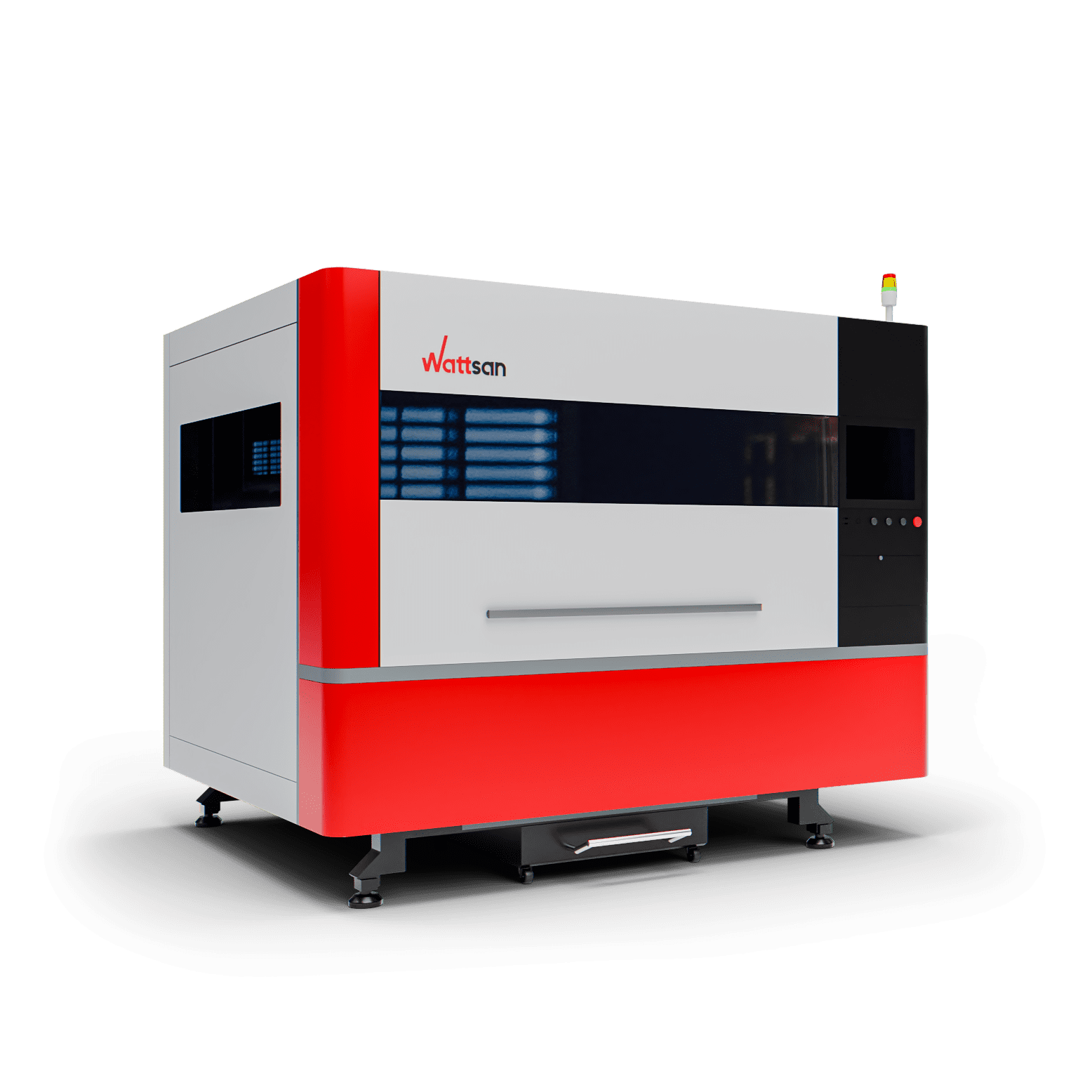

Fiber Laser Metal Cutting snis-850
1309
MINI
MINI
- Work area
- Laser power
- Travel speed
- Laser source
- snis-850 size
- Packing size
- 1300 x 900 mm
- up to 6 kW
- 40 m/min
- Raycus/MAX Photonics/IPG
- 2850 x 2100 x 2300 mm
- 3580 x 2250 x 2300 mm
All
Make a request
Servomotors and gantry work at high speed
Gantry
Servo motors
snis-850 snis-850s use a specially designed extruded aluminium gantry. It has high strength characteristics and low weight.
YASKAWA servo motors are reliable, quiet and affordable. They offer high power and low vibration in a compact size.
Several types of frames are available

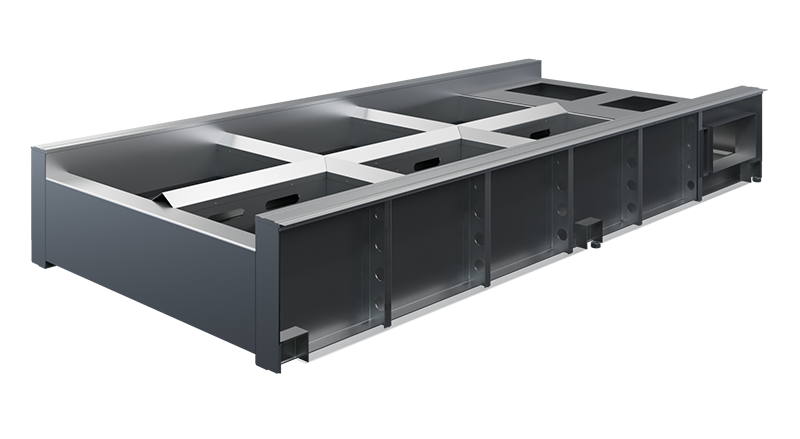

Frame standard

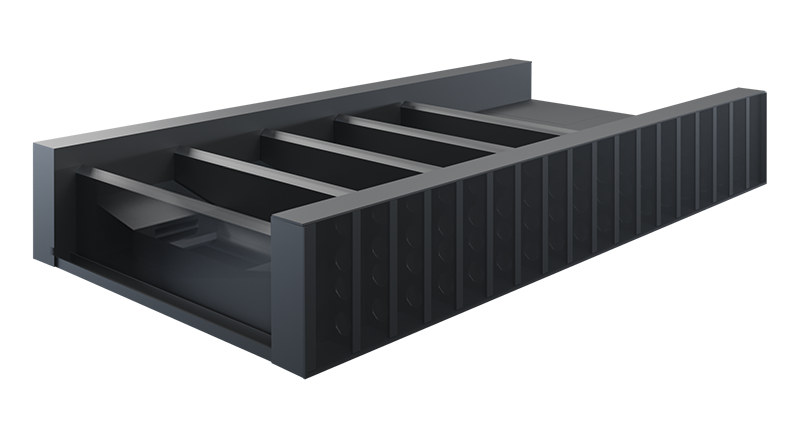

Frame hard
Manufactured for metal cutters with travel speeds of up to 80 metres per minute. The wall thickness of the frame is 8 to 10 mm. There is a reinforcing rib every 400 mm. The frame is heat-treated to ensure a long service life. snis-850 frame warranty is for 8 years. Used in basic models with work field sizes 1010, 1313, 1325 and 1530. Ventilation beam system with holes of different diameters for uniform fume extraction during cutting.
Manufactured for metal cutters with a travel speed of 100 to 160 metres per minute. The wall thickness is 12 to 16 mm. Every 400 mm sheet is reinforced inside the frame. The frame is heat treated to stabilize the metal. Frame has a 10 year warranty. Used in snis-850s with working field sizes from 1313 to 2060, used in configurations with an auto-shift or with a pipe cutting module. It has a number of features such as pneumatic flaps for efficient smoke removal during cutting, protection from powerful radiation, preparation for upgrading and others. The frame construction is extremely robust and durable.
snis-850 metal cutters are designed on feedback from customers and service engineers around the world.
All about the snis-850 in 15 seconds
Advantages of snis-850 laser metal cutters
Series comparison
SERIES/
Parameters
Work area
Laser power
Laser head
Motor power Z
Motor power XY
Acceleration
Max. travel speed
Laser source
Cabin
Auto change table
 |
|
| Learn more | Learn more |
| Work area | |
| Laser power | |
| Laser head | |
| Motor power Z | |
| Motor power XY | |
| Acceleration | |
| Max. travel speed | |
| Laser source | |
| Cabin | |
| Auto change table | |
We ensure the smooth running of snis-850 snis-850s
Startup & Training

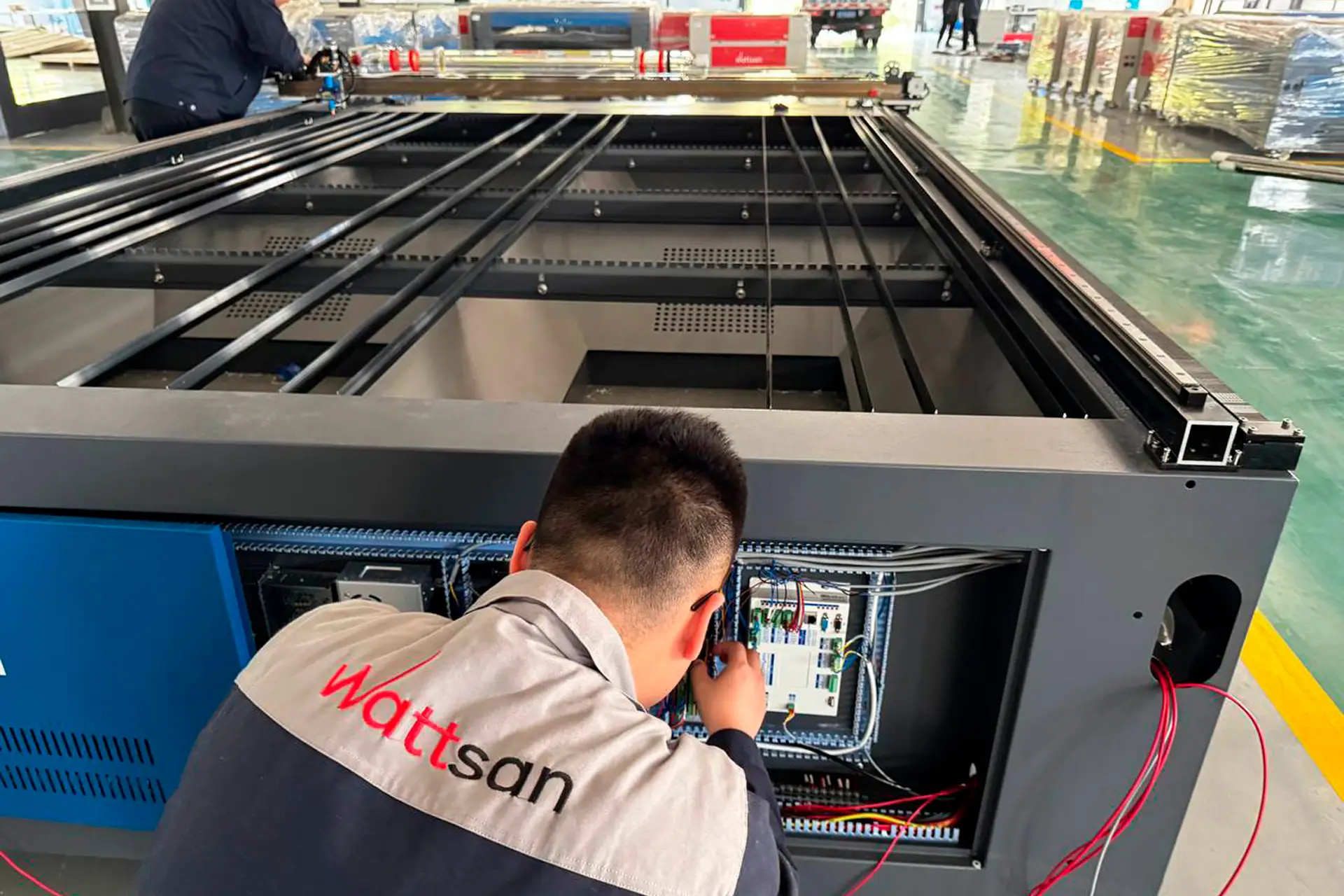

Service & Support
snis-850 service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic snis-850 operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.
Our service team operates across the world, and snis-850 snis-850s are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole snis-850’s lifespan.
All of our equipment comes with a warranty and a guaranteed return policy.
All of our equipment comes with a warranty and a guaranteed return policy.
Materials
The snis-850 can process
Aluminum
Carbon steel
Stainless steel
Brass
Copper
Galvanized steel
Titanium
Technical
characteristics
Dimensions
snis-850 size
2850 x 2100 x 2300 mm
Packing size
3580 x 2250 x 2300 mm
Packing weight
2200 kg
Optics
Laser head
Raytools/Precitec/BOCI
Laser power
up to 6 kW
Mechanics
Motors
Yaskawa
Engine power Z
400 W
Engine power XY
750 W/750 W*2
Structure of the axes XY
HIWIN Guides/Ball Screws
Structure of the axes Z
HIWIN Guides/Ball Screws
Height sensor
Automatic capacitive
Lubrication system
Automatic centralised, nikkibenz
Max. travel speed
40 m/min
Max. operating speed
Depends on the material
Additional gas
Oxygen, nitrogen, air, argon
Auto change table
No
Bed
Control system
FSCUT
Power electrics
Siemens
Repositioning accuracy
±0.006 mm
Height control system
BCS100
Type of end sensors
Inductive
Working temperature
10-40 °C
Laser source
Raycus/MAX Photonics/IPG
Laser power adjustment
10-100 %
Software
FSCUT
FSCUT
Laser head
RAYTOOLS
RAYTOOLS
Laser source
IPG
IPG
Motors
MITSUBISHI
MITSUBISHI
Rails
HIWIN
HIWIN
Make a request
Logistics
We will deliver the equipment under the most convenient conditions for you
If the snis-850 is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.
We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a snis-850 delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.
EXW is the most basic shipment type, FOB and CIF may be considered the golden mean, and DDP is the most convenient.
