Mini laser cutting and engraving 福建体彩31选7走势图官网

Laser Cutting Engraving 福建体彩31选7走势图官网 6040

  • Work area
  • Tube power
  • Max engraving speed
  • Dimensions
  • Net weight
  • Packing size
  • 600 x 400 mm
  • 80-90 W
  • 500 mm
  • 1165 x 765 x 600 mm
  • 110 kg
  • 870 x 1250 x 730 mm

Be Safe and Sound

The desktop series was created with the idea of strict safety regulations and user convenience in mind. Thus, they can be easily used even in classrooms and home workshops. For that, desktop 福建体彩31选7走势图官网s have four features.

welder

In-built ventilation system

No need for additional devices, a solid protection for a user

Certified first-class laser

Keeps radiation and gases inside. Can be used in educational facilities.

User-friendly interface

The controller is easy to use and doesn't require additional training.

Thought-out design

All components have standard sizes, are easily accessible and changed

福建体彩31选7走势图官网-img
福建体彩31选7走势图官网-img
福建体彩31选7走势图官网-img
福建体彩31选7走势图官网-img
福建体彩31选7走势图官网-img
福建体彩31选7走势图官网-img

Save up to 70% on 好屌爽在线视频 with laser cutting 福建体彩31选7走势图官网s

The 福建体彩31选7走势图官网 6040 laser 福建体彩31选7走势图官网 is an advanced medium format model for laser cutting and engraving of non-metallic materials.

The 福建体彩31选7走势图官网 6040 is suitable for mass 好屌爽在线视频 and hobby applications. We design 福建体彩31选7走势图官网s to meet the needs of our customers.

Anodized lamellae helps to avoid backfiring the laser beam into the laser head or into the operator

Universal mounts

Allows the use of different diameter and length laser tube, vertical and horizontal adjustment speeds up the alignment of the 福建体彩31选7走势图官网

The frame structure makes 福建体彩31选7走势图官网 福建体彩31选7走势图官网s unique

The 福建体彩31选7走势图官网 frame removes vibrations, especially during engraving, since the greatest moment of inertia is achieved during engraving. It is important to remember the accuracy of the 福建体彩31选7走势图官网.

The increased thickness of the body is designed to reduce vibrations arising during engraving.

On 福建体彩31选7走势图官网 福建体彩31选7走势图官网s, the body thickness is 2.9 mm or higher on 福建体彩31选7走势图官网s such as 1610 and larger. The additional thickness of the frame body increases the service life of the 福建体彩31选7走势图官网 and its problem-free operation.

Enhanced Portal

Allows you to work at high speeds without causing vibrations. Ensures uniform cutting through the entire table area.

Stepper motors and belt drives

Three-phase stepper motors have a smaller pitch, resulting in higher engraving quality. The belt gearbox (4:1) chops the pitch and reduces the voltage from the stepper motor.

3M Belt

Rubber belts with an enlarged tooth are used to extend service life. Belt material allows increased tension without causing vibration and eliminates coin cutting.

    The frame structure makes the 福建体彩31选7走势图官网s 福建体彩31选7走势图官网 unique

    Frame construction
    Hull thickness
    The frame of the 福建体彩31选7走势图官网 relieves vibration, especially during engraving, because the greatest moment of inertia is achieved during engraving.

    It is important to keep in mind the accuracy of the 福建体彩31选7走势图官网 as well.
    The increased enclosure thickness is designed to reduce vibration during engraving.

    福建体彩31选7走势图官网 福建体彩31选7走势图官网s have an enclosure thickness of 2.7 mm.
    The extra enclosure thickness increases 福建体彩31选7走势图官网 life and performance.
    福建体彩31选7走势图官网-img 福建体彩31选7走势图官网-img
    福建体彩31选7走势图官网-img 福建体彩31选7走势图官网-img

    High accuracy of engraving at high speeds for decades

    Enhanced Portal
    3M belts
    The reinforced portal seriously affects the accuracy of the 福建体彩31选7走势图官网, the lack of vibrations, durability, the speed of movement and the inertia of the equipment.
    3M belts with increased tooth size are used; such belts serve longer and are not prone to abrasion. The material of the belts is especially important, unlike poleuritan belts, the 3M belts prevent the occurrence of a coin cut since no flapping occurs during stretching.
    福建体彩31选7走势图官网-img 福建体彩31选7走势图官网-img
    福建体彩31选7走势图官网-img 福建体彩31选7走势图官网-img

    福建体彩31选7走势图官网 – getting stronger with every new customer!

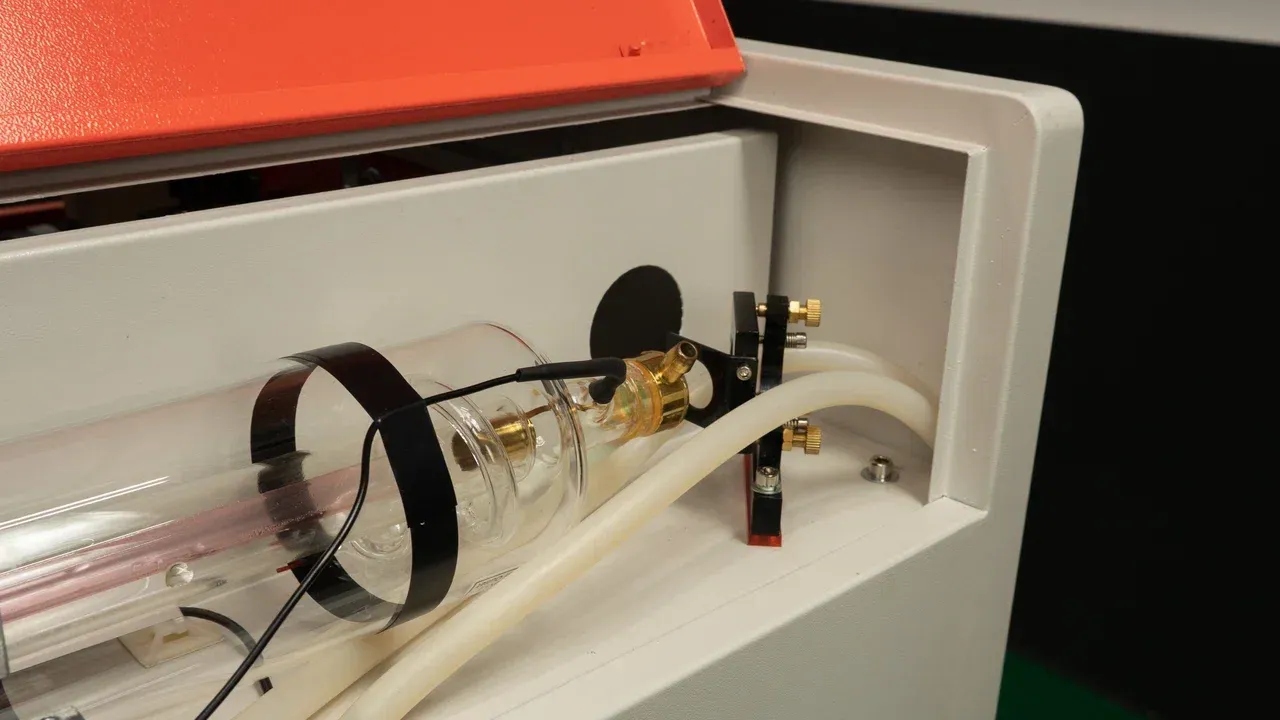

    Laser tube power rheostat and universal mounting
    福建体彩31选7走势图官网-img

    福建体彩31选7走势图官网 福建体彩31选7走势图官网s are equipped with a potentiometer designed to work at power below 10%, this feature allows one to use even powerful tubes for engraving, without losing quality due to the smaller area of the laser beam.

    福建体彩31选7走势图官网-img

    The adjustable laser tube mounts allow the use of laser tubes of various lengths and diameters and, in combination with adjustable mirrors, facilitate 福建体彩31选7走势图官网 setup and alignment.

    More than 300 improvements have been made to the design of 福建体彩31选7走势图官网 福建体彩31选7走势图官网s

    福建体彩31选7走势图官网-img

    Сonnector to nozzle

    Proper design prevents bursting, even at high pressures

    福建体彩31选7走势图官网-img

    Location of belts

    Belts are positioned over the gantry for easy maintenance and to prevent heat during cutting

    福建体彩31选7走势图官网-img

    Polyurethane air supply tubes

    Withstands up to 8 atmospheres of bursting pressure.

    福建体彩31选7走势图官网-img

    Mechanical protection

    Protects the moving parts of the lift and lowering table from the ingress of small residues

    福建体彩31选7走势图官网-img

    Chain for table lifting and lowering

    In combination with an asynchronous motor, the load on the working table is up to 80 kg, no misalignment of the table in the horizon.

    福建体彩31选7走势图官网-img

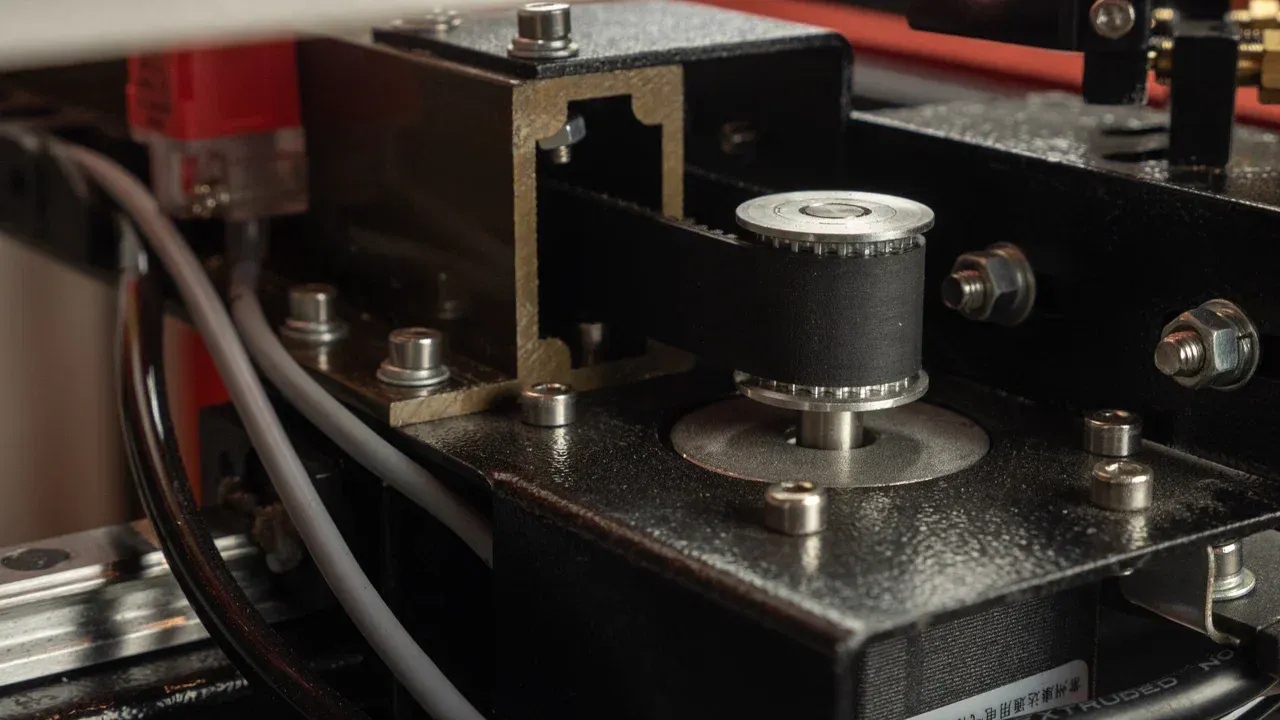

    Belt reduction gear

    The combination of a three-phase stepper motor with a 4:1 belt reducer allows you to get high engraving quality up to 2500 DPI.

    福建体彩31选7走势图官网-img

    Correct position of stepper motors

    The stepper motor is centered on the shaft on the Y-axis for even load distribution, which greatly increases its service life and accuracy in the 好屌爽在线视频 of small parts.

    Series comparison

    SERIES/
    Parameters

    Working area

    Weight

    Laser power

    ZnSe lens

    Focal length

    Lifting table

    Control system

    Power consumption

    Through table

    XY axis structure

    slide-image

    福建体彩31选7走势图官网 0503 Hobby-T

    Learn more

    500 x 300 mm

    49 kg

    55 W

    18 mm

    38 mm

    Manual

    Ruida RDC8445S

    640 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    0203 Micro

    Learn more

    200 х 300 mm

    40 kg

    40 W

    18 mm

    38 mm

    No

    M3

    350 W

    No

    Round guide/Roller

    slide-image

    0503

    Learn more

    500 х 300 mm

    98 kg

    60W

    18 mm

    38 mm

    Manual

    Ruida RDC8445S

    640 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6040

    Learn more

    600 х 400 mm

    110 kg

    80-90 W

    18 mm

    38 mm

    Manual

    Ruida RDC8445S

    740 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 LT

    Learn more

    600 x 900 mm

    350 kg

    80-90 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    1550 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 ST

    Learn more

    600 х 900 mm

    200 kg

    80-90 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 LT

    Learn more

    1200 х 900 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 ST

    Learn more

    1200 х 900 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 LT

    Learn more

    1600 х 1000 mm

    470 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 ST

    Learn more

    1600 х 1000 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 DUOS LT

    Learn more

    1200 х 900 mm

    500 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    2050 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 DUOS ST

    Learn more

    1200 х 900 mm

    500 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2000 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 DUOS LT

    Learn more

    1600 x 1000 mm

    488 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445S

    3400 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 DUOS ST

    Learn more

    1600 х 1000 mm

    488 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    3350 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 CAM CONVEYER

    Learn more

    1600 x 1000 mm

    770 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    1610 DUOS CONVEYER

    Learn more

    1600 x 1000 mm

    708 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    NC-C 1612

    Learn more

    1600 x 1200 mm

    680 kg

    130-160 W

    20 mm

    50 mm *options

    Yes

    Ruida RDC8445S

    3500 W

    Yes (Y-axis)

    Roller metal, metal rollers

    slide-image

    2030 FLAT BED

    Learn more

    2000 x 3000 mm

    800 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445S

    2800 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 ST

    Learn more

    600 х 900 mm

    256 kg

    80-90 W

    20 mm

    50 mm

    No

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 LT

    Learn more

    600 х 900 mm

    256 kg

    80-90 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 ST

    Learn more

    1200 х 900 mm

    340 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 LT

    Learn more

    1200 х 900 mm

    362 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 ST

    Learn more

    1600 х 1000 mm

    400 kg

    100-120 W

    20 mm

    50 mm

    No

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 LT

    Learn more

    1600 х 1000 mm

    450 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    1500 W

    Yes (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    6090 PRO

    Learn more

    900 x 600 mm

    362 kg

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    2000 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1290 PRO

    Learn more

    1200 х 900 mm

    -

    100-120 W

    20 mm

    20 mm

    Yes

    Ruida RDC8445

    2000 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    slide-image

    1610 PRO

    Learn more

    1600 х 1000 mm

    -

    100-120 W

    20 mm

    50 mm

    Yes

    Ruida RDC8445

    2000 W

    Yes. (Y-axis)

    Linear guide AMT PMI MSB 15S

    ... ...
    Working area
    Weight
    Laser power
    ZnSe lens
    Focal length
    Lifting table
    Control system
    Power consumption
    Through table
    XY axis structure

    We ensure the smooth running of 福建体彩31选7走势图官网 福建体彩31选7走势图官网s

    Startup & Training
    Service & Support
    福建体彩31选7走势图官网 service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic 福建体彩31选7走势图官网 operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.
    Our service team operates across the world, and 福建体彩31选7走势图官网 福建体彩31选7走势图官网s are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole 福建体彩31选7走势图官网’s lifespan.
    All of our equipment comes with a warranty and a guaranteed return policy.
    Startup & Training Startup & Training
    Service & Support Service & Support

    Materials

    The 福建体彩31选7走势图官网 is suitable for materials

    img Acrylic
    img Bamboo
    img Ceramic tile
    img Jade
    img Fabric
    img Foam rubber
    img Granite
    img Leather
    img Mdf
    img Paronite
    img Plastic
    img Plywood
    img Resin
    img Rubber
    img Stone
    img Wood
    img Wool
    img Chipboard

    Technical
    characteristics

    Dimensions
    Net weight
    110 kg
    Packing size
    870 x 1250 x 730 mm
    Packing weight
    121 kg
    Optics
    Laser power
    80-90 W
    Engraving depth
    3 mm
    Max. cutting thickness
    7-8 mm
    Mirror Diameter
    25 mm
    ZnSe lens
    ZnSe D18
    Focus distance
    38 mm
    Laser tube lifetime
    10000 h
    Mechanics
    Working surface
    Blade table
    Working table lowering depth
    Yes, manual
    Cutting speed
    0-500 mm/s
    Engraving Speed
    0-500 mm/s
    Positioning precision
    0,01 mm
    Laser cooling
    Water
    Power
    220 ±10% 50Hz
    Power consumption
    740 W
    Through table
    Yes. (Y-axis)
    Structure of the axis Y
    Linear guide AMT PMI MSB 15S
    Structure of the axis X
    Linear guide AMT PMI MSB 15S
    Engine on X
    57-H350B
    Engine on Y
    57-H350CS / SH (2 shafts)
    Software
    RDL (LaserWork 8)
    File transfer
    Wifi, Lan, USB
    Control system
    RuiDa
    Laser tube
    RECI, LASEA, SPT
    CorelDraw, Photoshop, AutoCAD
    BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG

      Logistics
      We will deliver the equipment under the most convenient conditions for you

      If the 福建体彩31选7走势图官网 is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.

      We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a 福建体彩31选7走势图官网 delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.

      EXW is the most basic shipment type, FOB and CIF may be considered the golden mean, and DDP is the most convenient.

      Technical
      characteristics

      Dimensions
      Net weight
      110 kg
      Packing size
      870 x 1250 x 730 mm
      Packing weight
      121 kg
      Optics
      Laser power
      80-90 W
      Engraving depth
      3 mm
      Max. cutting thickness
      7-8 mm
      Mirror Diameter
      25 mm
      ZnSe lens
      ZnSe D18
      Focus distance
      38 mm
      Laser tube lifetime
      10000 h
      Mechanics
      Working surface
      Blade table
      Working table lowering depth
      Yes, manual
      Cutting speed
      0-500 mm/s
      Engraving Speed
      0-500 mm/s
      Positioning precision
      0,01 mm
      Laser cooling
      Water
      Power
      220 ±10% 50Hz
      Power consumption
      740 W
      Through table
      Yes. (Y-axis)
      Structure of the axis Y
      Linear guide AMT PMI MSB 15S
      Structure of the axis X
      Linear guide AMT PMI MSB 15S
      Engine on X
      57-H350B
      Engine on Y
      57-H350CS / SH (2 shafts)
      Software
      RDL (LaserWork 8)
      File transfer
      Wifi, Lan, USB

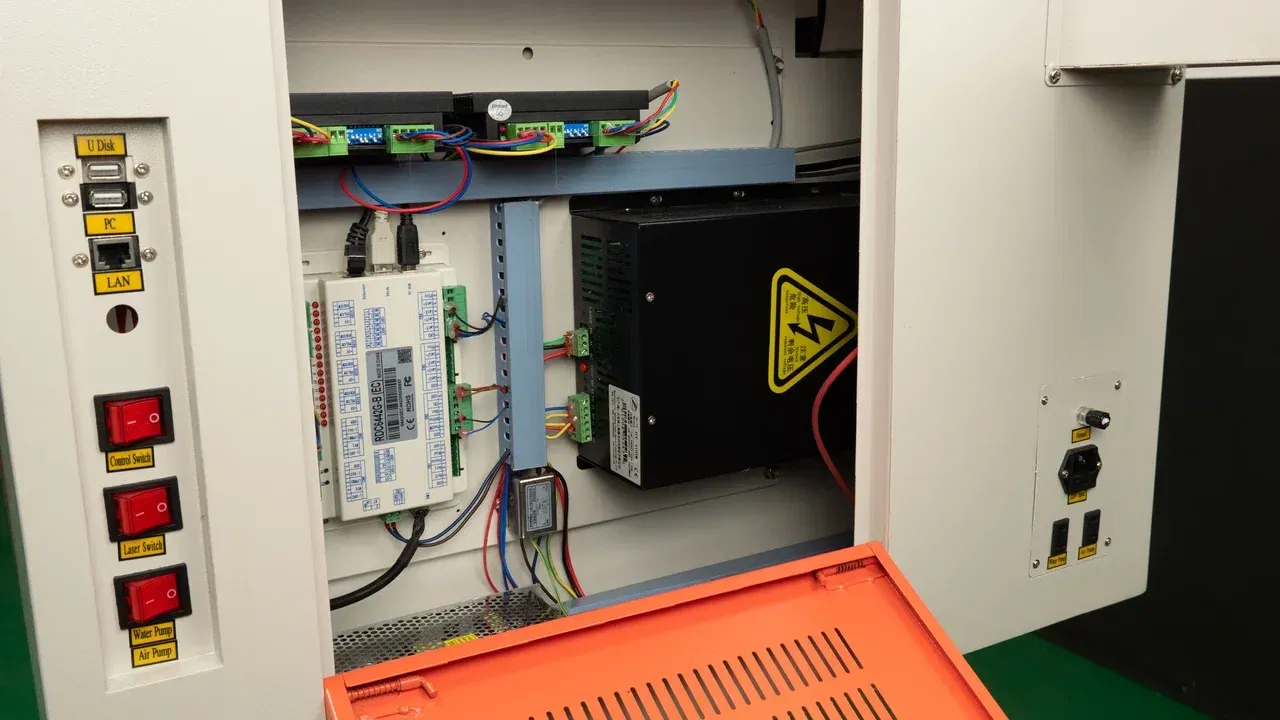

      Control system
      RuiDa
      Laser tube
      RECI, LASEA, SPT
      CorelDraw, Photoshop, AutoCAD
      BMP, GIF, JPG, TIFF, PLT, CDR, DXF, AI, SVG

      Contact

      友情链接:gxbh-tec.com | srjsjx.com | vh93.com | tingchetong.com | altai2000.com | ysrenfang.com | fosd18.com | lightriverstudio.com | jnjzxyy.com | idh-ci.com | tennwin.com | chaoshengdao.com | gx6yar44.com | cdzhenzui.com | vf61.com | bjzncwy.com | guilinltgg.com | xj-kry.com | changchunshi.com | ldsgcbw.com | pzdbzx.com | jsszxny.com | bluesrocknrolljazz.com | ycy2025.com | hzmdhzp.com | 5ggl.com | chuanglianfamily.com | cdfgh.com | greenhoperisefield.com | sdswkb.com | lelingai.com | wfnovel.com | wmhysky.com | xyfutures.com | jiangxinkjzs.com | inumaruya.com | daoreyoujiacengguo.com | hnrdjg.com | gznjqc.com | gssyjz.com | yczai.com | 1030n.com | 12on14.com | tythyy.com | zhch1999.com | dingcan7.com | oleoylestrone.com | jiubanjia.com | 8590333.com | jzqxapp.com | lantaiguanggao.com | zz7392.com | estiwebsite.com | softopto.com | jwdqfw.com | abcjuming.com | rclogger.com | qifeijiaoyu.com | weinate.com | bwsid.com | 0898yali.com | mhlsym.com | expresszmagyarjogositvany.com | sijilangyuan.com | beijingyuezhang.com | bikes101.com | 51aldin.com | hbpengpai.com | 8szhyt8.com | zhaohecm.com | entrepreneurialctr.com | balanceforest.com | xchte.com | 3z7y7ilp.com | artbide.com | unblockpp.com | sinozecsales.com | naifenshop.com | oaklandcountywelldrilling.com | bjwzxh.com | bryunshang.com | manufaktury.com | sunnavip.com | xylonghui.com | santingtv.com | qmobaby.com | escloupeto.com | moeenglishtutor.com | wuliu569.com | thinkershare.com | dingshiplan.com | shgjsz.com | haobaoxiao.com | zaishuai.com | haobianhua666.com | zhikunedu.com | nbcxw.com | jnanxinhg.com | cqjzxkfwb.com | goodthingone.com | china-gddl.com | tldqi.com | jinlingshier.com | syqianxianghb.com | sh-tongtong.com | rm-9.com | 1stbridesmaid.com | vvnmm.com | kinshicho-aikido.com | ammmc.com | klyjj.com | hualingec.com | yucansh.com | jinguowa.com | jlyhbg.com | yonglaizhu.com | yizhefeng.com | andsobut.com | crccjj.com | 50fzb.com | wdmegroup.com | rzjzkl.com | maxwell-motor.com | xl71.com | coohan.com | tiananmenlvyou.com | mexicanpottery-art.com | cdsjzy.com | pz41.com | fstmjzxh.com | jyj888.com | dcsjv.com | 2xkd.com | bewonce.com | gdglfl.com | vy23.com | shzsjd.com | dycaiyi.com | dianzg.com | liuxing222.com | ytxjmb.com | ssgtest01.com | zhimapobi.com | whmahaha.com | llhdby.com | cms6666.com | ai-noodle.com | cnherald.com | 3dadvertisementproduction.com | dengshigou.com | wyd1688.com | tool52.com | ihjcc.com | 4uitem.com | xabdfm.com | shovya.com | nyecospaces.com | ylxxdj.com | kuma114.com | kmyfhg.com | moon1188.com | zijinjg.com | kataruni.com | xmquzao.com | yunxiuzhenlin.com | nazhihealthcare.com | seiwa-shop.com | sxailife.com | lhjrzs.com | zdycxy.com | coolmgr.com | shrywfs.com | andreaturek.com | ganzhaliji.com | 566571.com | kimhannemann.com | dubangkeji.com | lianyizz.com | jlbjhh.com | ssxlwx.com | xiaolanding.com | qdzzrshr.com | melshake.com | glfly.com | hnanjia.com | mxtylys.com | luoyangbingcheng.com | yzmer.com | all-studying.com | rphmarketing.com | forskningsfronten.com | zhenaoyiliao.com | zloverseas.com | grandfatherchronicles.com | weizhenhot.com | dttbjx.com | eggfashiontoy.com | xuranshop.com | rbscbk.com | eyantang.com | zuisj.com | gztygjjd.com | minanbao.com | wyaxls.com | szqdyu.com | maimengchong.com | tzxingwei.com | 8338867.com | njzaex.com | vw-ntdl.com | 071806.com | justinzhongnext.com | hnsdai.com | wei-ar.com | chongwu99.com | gzconvon.com | 4hutt56.com | tianlenb.com | btsjsmy.com | rljonesinsurance.com | colloso.com | tjdmw.com | xintianpeng.com | 524469.com | yingqt.com | zzsjxt.com | hualongjiuye.com | lvyagolf.com | sdmxgccl.com | wphzeu.com | bgxbxxw.com | zgmowang.com | ydhyjhq.com | edwto.com | jyukuirazu.com | cis-sj.com | 2233031.com | bsxl999.com | zmat01.com | hhcq999.com | tzjctwall.com | hunanlitian.com | 86650602.com | haunts-bs.com | hushuiqinglawyer.com | ntbsra.com | 7digito.com | jialianyi.com | dehanyuan.com | sdxcfre.com | tibetgeo.com | geojieer.com | caiqituliao.com | ieplvpn.com | hmgszz.com | rrssyy.com | gxwxlcf.com | lilaib.com | bullcoach.com | jinguo28.com | d09q5vug.com | wlgww.com | jdhyxf.com | lord-cn.com | ganghongmachine.com | washbn.com | 9scd.com | rwdzs.com | nodwords.com | 51syhz.com | 320259.com | sergiosanchezart.com | 2ncai.com | uanika.com | akssdsfwzxpt.com | huaqihongye.com
