Package list
USB flash drive
The marker pedal (foot switch)
Power cable
USB cable
Clamping lever
Protective glasses in a case
Key set
To catalog
- Laser power
- Laser source
- Work area
- Marker type
- Lens working area
- 与丰满老妇人做爰a片 size
- 5-100 W
- JPT (LP/M7), IPG, RAYCUS, JPT SEAL, RF DAVI
- 200 x 200 mm
- Table type
- from 50x50 to 300x300 mm
- FL: 870 x 400 x 740 mm
All characteristics
Make a request
The best components to provide speed and precision
Sino-Galvo scanners

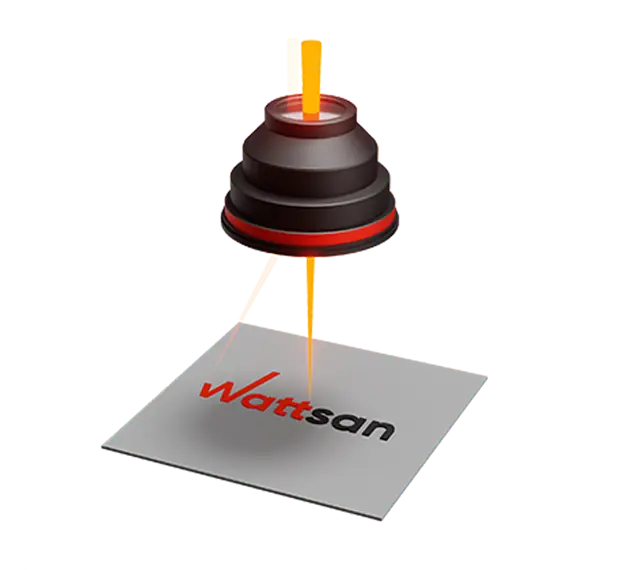

OPEX lenses, F-Theta system
It's responsible for directing the laser beam on the material’s surface. At 与丰满老妇人做爰a片, we use Sino-Galvo scanners. They have high marking and positioning speed.
The lens is focusing the beam on the material surface. The main advantage of F-Theta lenses is the ability to maintain the same focusing point along the whole working area. Focal length and working area sizes are strictly related.

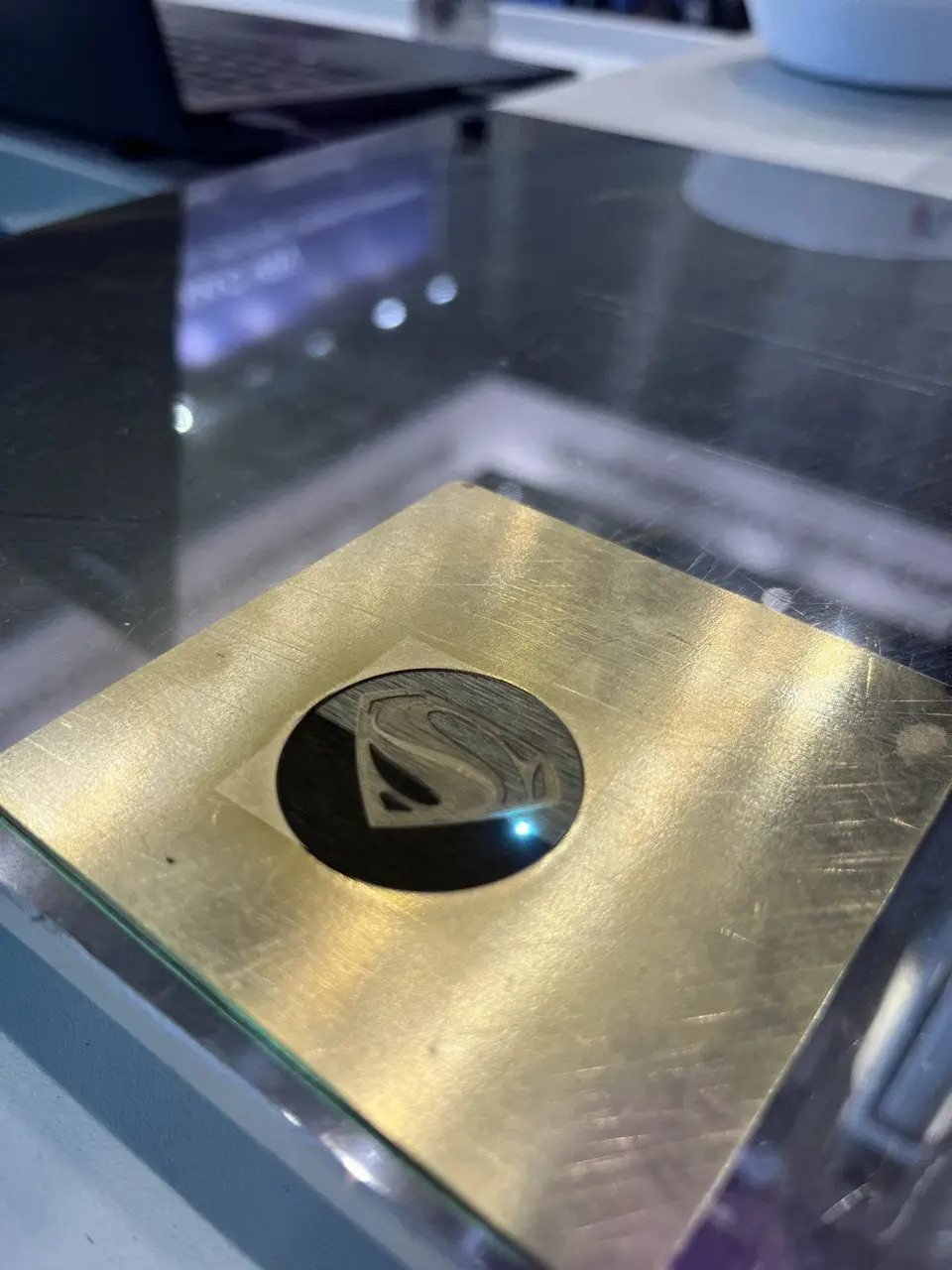

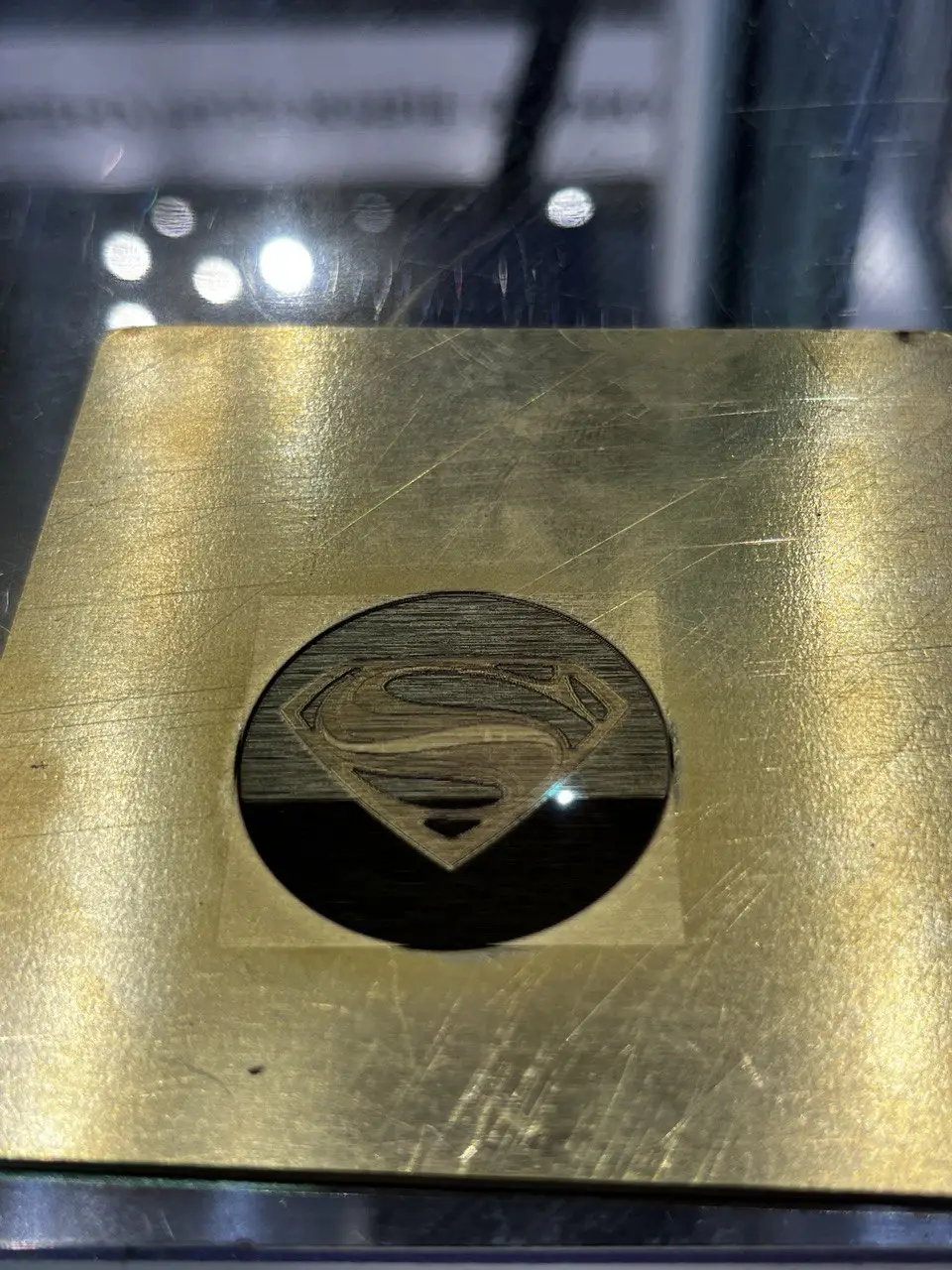

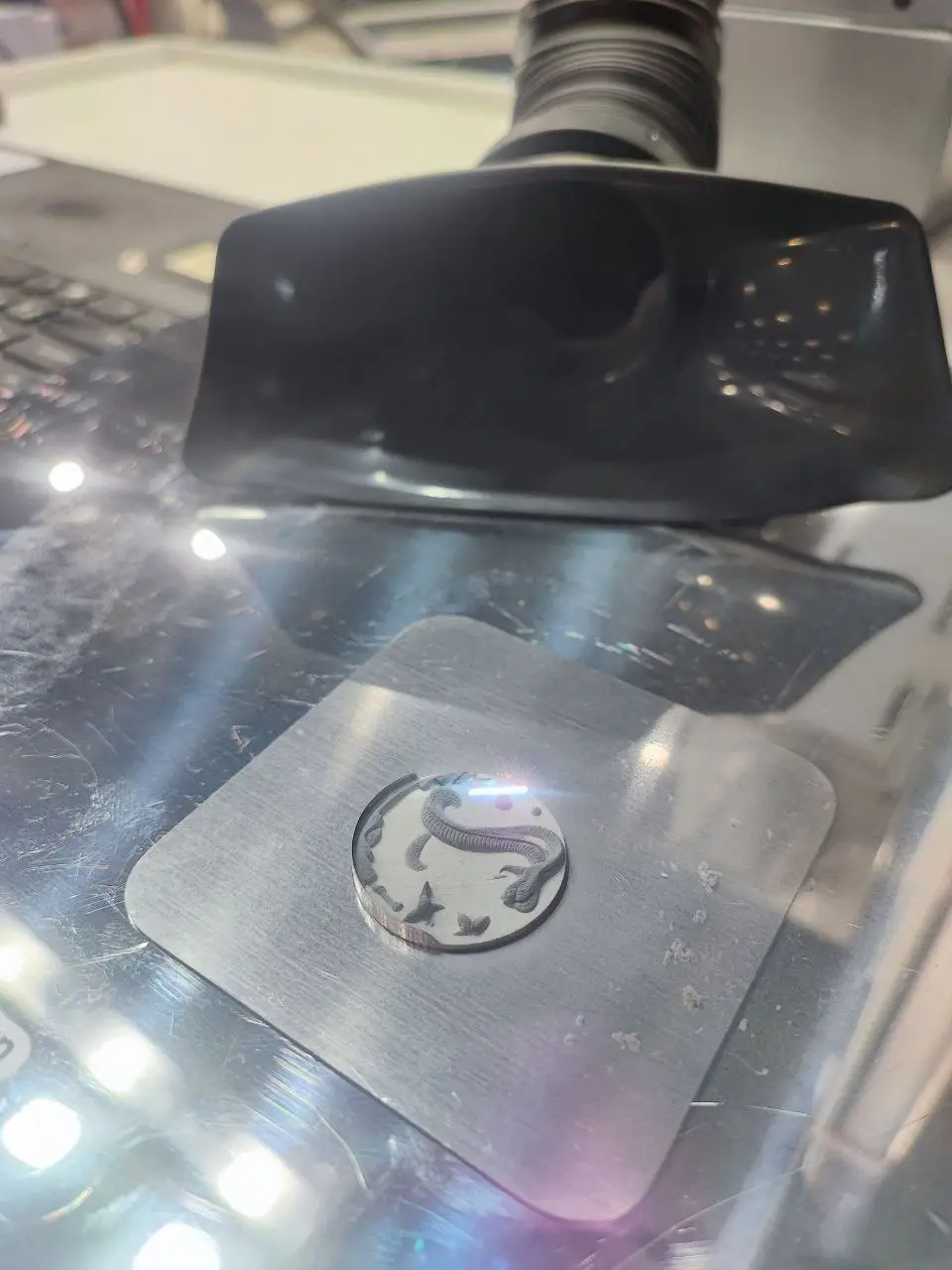

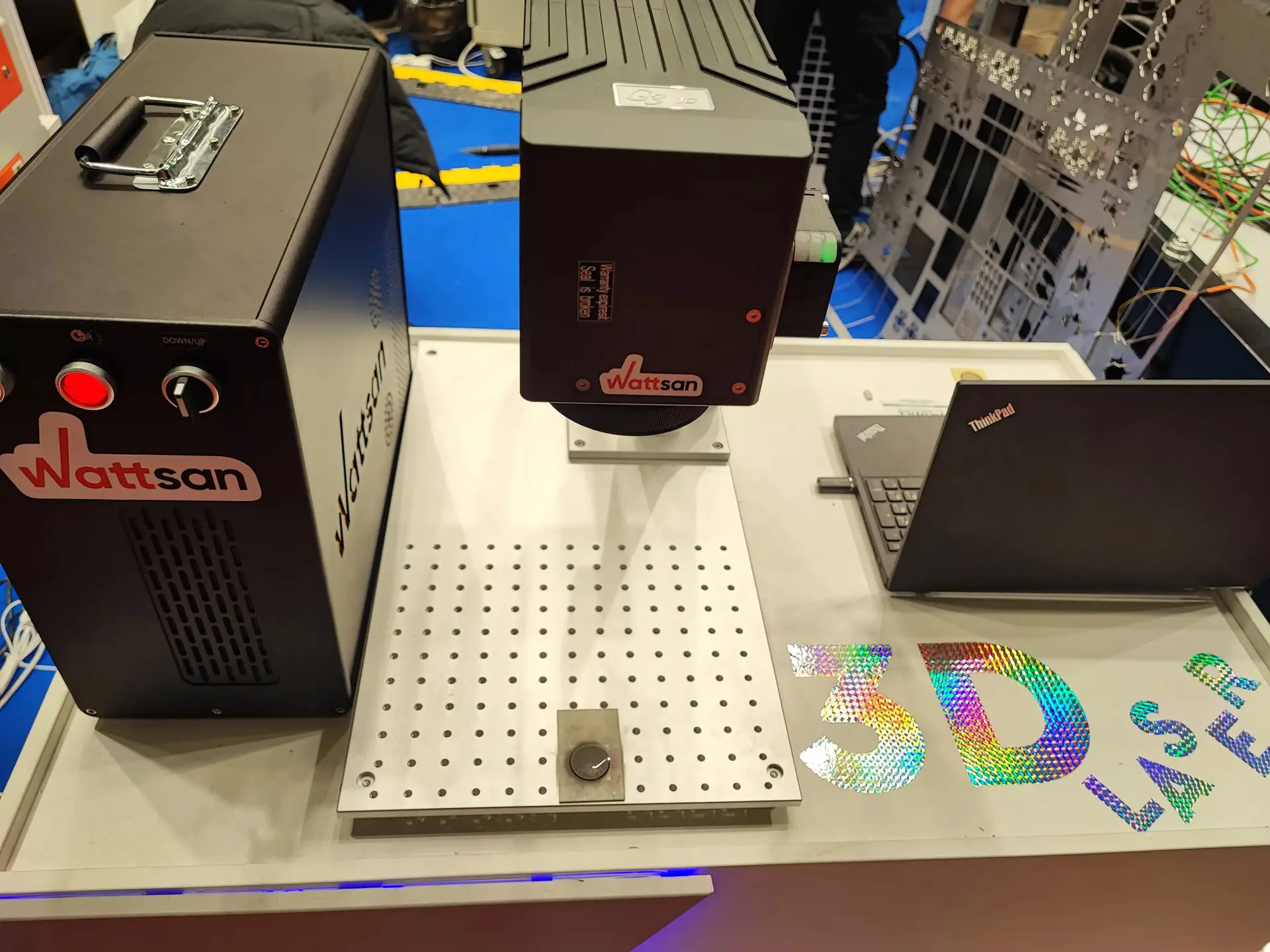

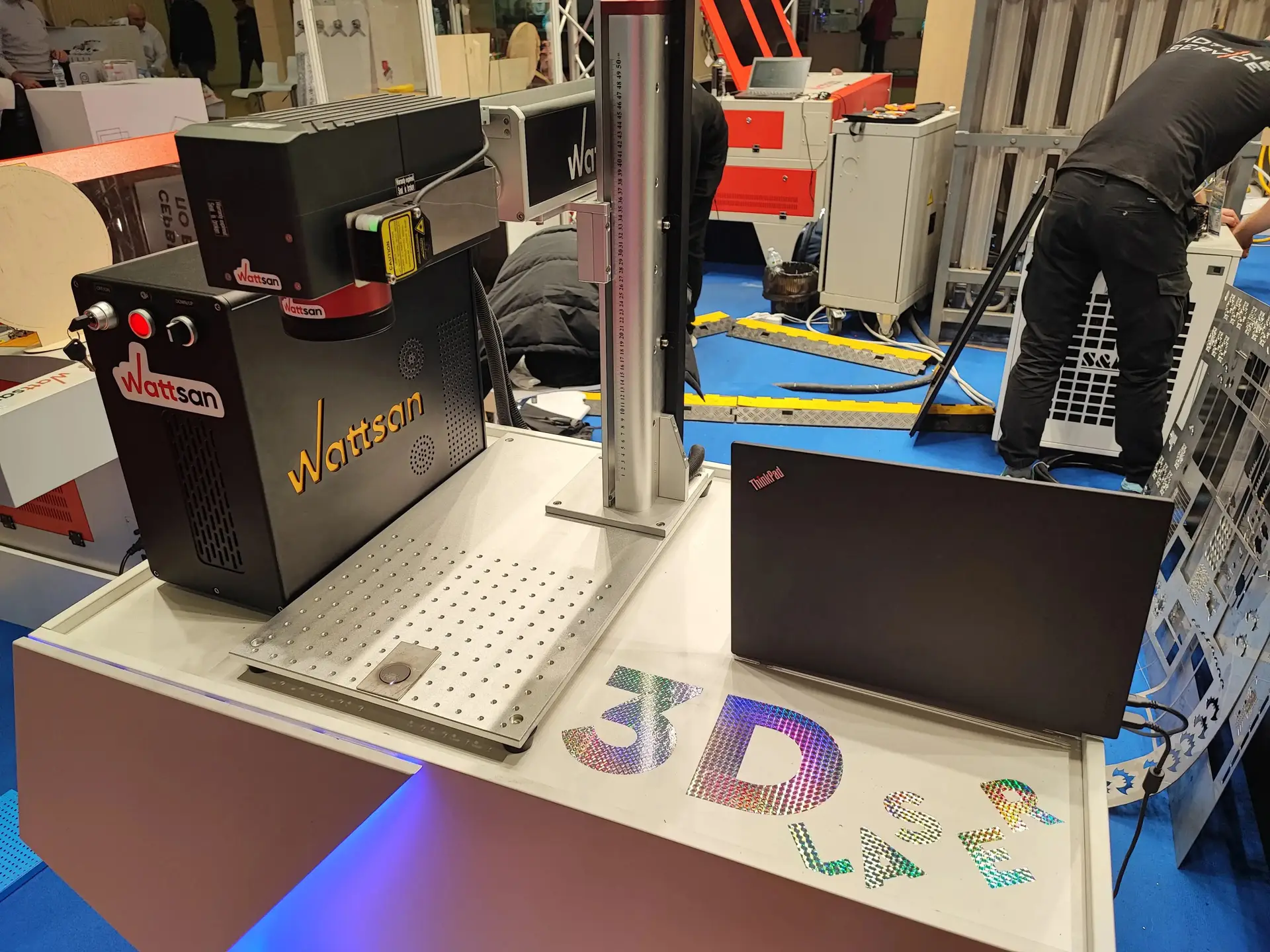

See Our Laser Markers in Action: Marking and Engraving Across Various Materials
All about the 与丰满老妇人做爰a片 in 60 seconds
Original software and equipment for perfect results

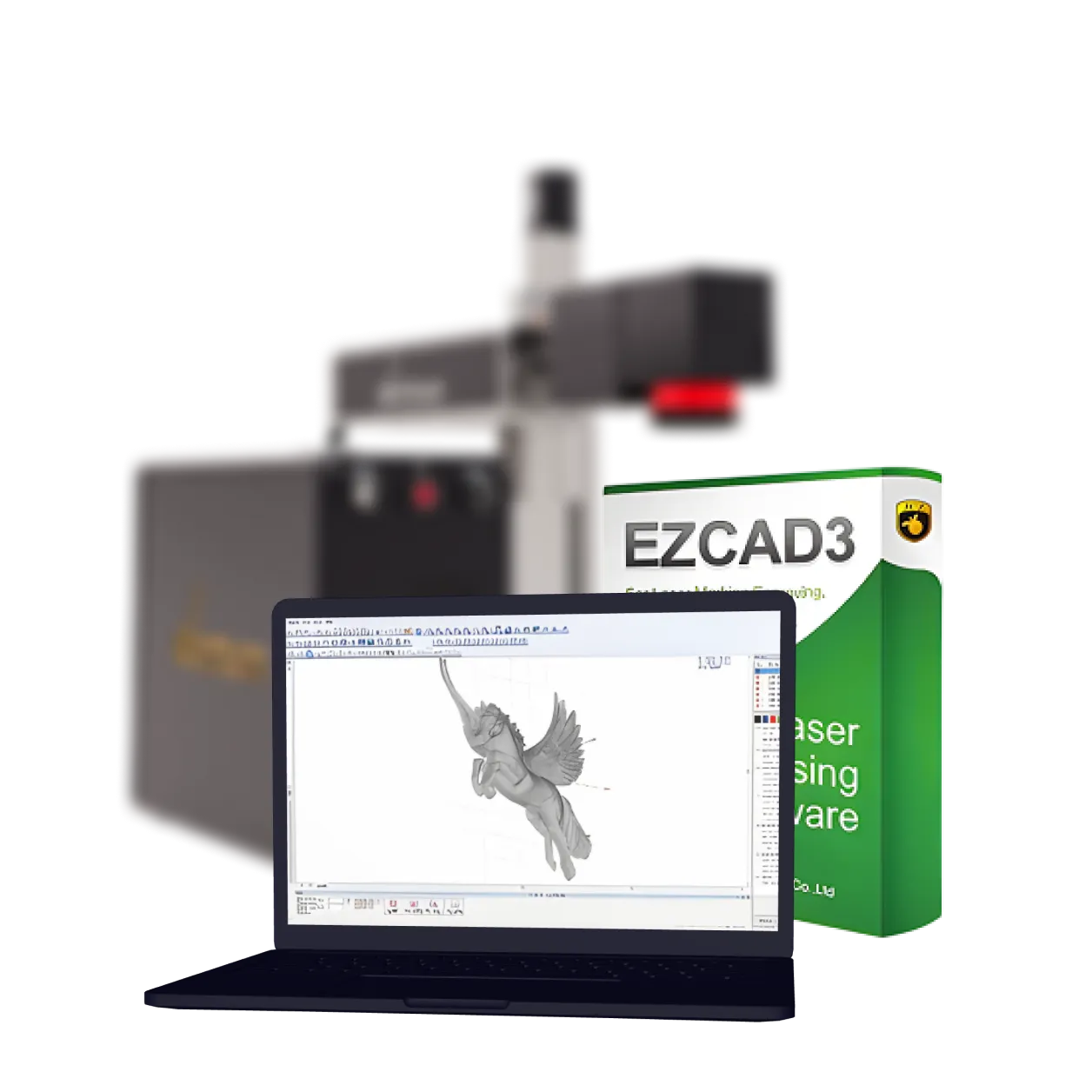

The EZCAD software is extremely powerful and unleashes the potential of any source, enabling both color engraving and depth engraving. With integrated 2D and 3D functions, it also supports high-performance motion control to handle multiple formats. Supports 3D model formats such as STL and DXF.
The Ezcad3 software and the DLC editor used with the G3 3D galvanometer scanner adopt a high-intensity laser beam correction algorithm. The dynamic zoom system range of ±30 mm (174-254 mm lens) comes with high-precision calibration.
Individualize 与丰满老妇人做爰a片 for your a片免费视频在线观看.
Series comparison
SERIES/
Parameters
Marker type
Laser source
Laser power
 |
|
| Learn more | Learn more |
| Marker type | |
| Laser source | |
| Laser power | |
We ensure the smooth running of 与丰满老妇人做爰a片 与丰满老妇人做爰a片s
Startup & Training
Service & Support
与丰满老妇人做爰a片 service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic 与丰满老妇人做爰a片 operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.
Our service team operates across the world, and 与丰满老妇人做爰a片 与丰满老妇人做爰a片s are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole 与丰满老妇人做爰a片’s lifespan.
All of our equipment comes with a warranty and a guaranteed return policy.
All of our equipment comes with a warranty and a guaranteed return policy.
Materials
The 与丰满老妇人做爰a片 fiber laser a片免费视频在线观看 can process
Acrylic
Aluminium
Brass
Cardboard
Copper
Plactic
Plywood
Stainless steel
Stone
Wood
Technical
characteristics
Dimensions
Lens working area
from 50x50 to 300x300 mm
与丰满老妇人做爰a片 size
FL: 870 x 400 x 740 mm
UV: 1010 x 420 x 1000 mm
UV with chiller: 990 x 590 x 1000 mm
Weight
FL: 52 kg
UV: 77 kg
Packing size
FL: 820 x 490 x 850 mm
UV: 960 x 500 x 1100 mm
UV with chiller: 940 x 680 x 1130 mm
Packing weight
FL: 57 kg
UV: 82 kg
UV with chiller: 115 kg
General
Marker type
Table type
Cooling type
Air (for fiber and RFsources)/Water (for uv source)
Laser source life
100 000 h for fiber and UV sources/20 000 h for RF source
Engraving speed
4000 mm/s
Desktop type
Static
Working temperature
10-40 С°
Protective case
No
Pedal
Yes
Options
Additional lens
from 50x50 to 300x300 mm
Rotary device
Option
Auto focus (rangefinder)
Option
Optics
Laser source
JPT (LP/M7), IPG, RAYCUS, JPT SEAL, RF DAVI
Fiber laser power
20/30/50/60/100 W
UV laser power
5/10/15/20 W
Laser power for CO2 source
30/60/100 W
Wave length
1064 nm (for fiber laser)/355 nm (for uv laser)/10640 nm (for CO2 laser)
Pulse duration
JPT M7 (MOPA): 2-500 ns
JPT LP: 200 ns
Raycus (Q-switch): 120-290 ns (depends on the power of the source)
JPT SEAL (UV): 20 ns
RF DAVI: -
Laser output frequency
JPT M7 (MOPA): 1-4000 kHz
JPT LP: 1 ~ 600 kHz
Raycus (Q-switch): 30-120 kHz (depends on the power of the source)
JPT SEAL (UV): 20-300 kHz (depends on the power of the source)
RF DAVI: 0 ~ 100kHz (depends on the power of the source)
Lens
F-Theta
Electrics
Controller
BJJCZ DLC2-M4-3D
Software
EZCAD3
File formats
PLT, DXF, Al, DST, SVG, GBR, NC, JPC, BOT
BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, Supports segmented processing
Three-dimensional model files
STL, DXF
Power consumption
Depends on the type and power of the source
Laser source
JPT, Raycus, DAVI
JPT, Raycus, DAVI
File transfer
Wifi, Lan, USB
Wifi, Lan, USB
Scanator
Original Sino-Galvo
Original Sino-Galvo
EzCad
CorelDraw, Photoshop, AutoCAD
BMP, GIF, JPG, TIFF, PLT, DXF, AI, SVG
BMP, GIF, JPG, TIFF, PLT, DXF, AI, SVG
Make a request
Logistics
We will deliver the equipment under the most convenient conditions for you
If the 与丰满老妇人做爰a片 is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.
We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a 与丰满老妇人做爰a片 delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.
EXW is the most basic shipment type, FOB and CIF may be considered the golden mean, and DDP is the most convenient.
Technical
characteristics
Dimensions
Lens working area
from 50x50 to 300x300 mm
与丰满老妇人做爰a片 size
FL: 870 x 400 x 740 mm
UV: 1010 x 420 x 1000 mm
UV with chiller: 990 x 590 x 1000 mm
Weight
FL: 52 kg
UV: 77 kg
Packing size
FL: 820 x 490 x 850 mm
UV: 960 x 500 x 1100 mm
UV with chiller: 940 x 680 x 1130 mm
Packing weight
FL: 57 kg
UV: 82 kg
UV with chiller: 115 kg
Optics
Laser source
JPT (LP/M7), IPG, RAYCUS, JPT SEAL, RF DAVI
Fiber laser power
20/30/50/60/100 W
UV laser power
5/10/15/20 W
Laser power for CO2 source
30/60/100 W
Wave length
1064 nm (for fiber laser)/355 nm (for uv laser)/10640 nm (for CO2 laser)
Pulse duration
JPT M7 (MOPA): 2-500 ns
JPT LP: 200 ns
Raycus (Q-switch): 120-290 ns (depends on the power of the source)
JPT SEAL (UV): 20 ns
RF DAVI: -
Laser output frequency
JPT M7 (MOPA): 1-4000 kHz
JPT LP: 1 ~ 600 kHz
Raycus (Q-switch): 30-120 kHz (depends on the power of the source)
JPT SEAL (UV): 20-300 kHz (depends on the power of the source)
RF DAVI: 0 ~ 100kHz (depends on the power of the source)
Lens
F-Theta
General
Marker type
Table type
Cooling type
Air (for fiber and RFsources)/Water (for uv source)
Laser source life
100 000 h for fiber and UV sources/20 000 h for RF source
Engraving speed
4000 mm/s
Desktop type
Static
Working temperature
10-40 С°
Protective case
No
Pedal
Yes
Electrics
Controller
BJJCZ DLC2-M4-3D
Software
EZCAD3
File formats
PLT, DXF, Al, DST, SVG, GBR, NC, JPC, BOT
BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, Supports segmented processing
Three-dimensional model files
STL, DXF
Power consumption
Depends on the type and power of the source
Options
Additional lens
from 50x50 to 300x300 mm
Rotary device
Option
Auto focus (rangefinder)
Option
JPT, Raycus, DAVI
File transfer
Wifi, Lan, USB
Wifi, Lan, USB
Scanator
Original Sino-Galvo
Original Sino-Galvo
Software
EzCad
EzCad
CorelDraw, Photoshop, AutoCAD
BMP, GIF, JPG, TIFF, PLT, DXF, AI, SVG
BMP, GIF, JPG, TIFF, PLT, DXF, AI, SVG
