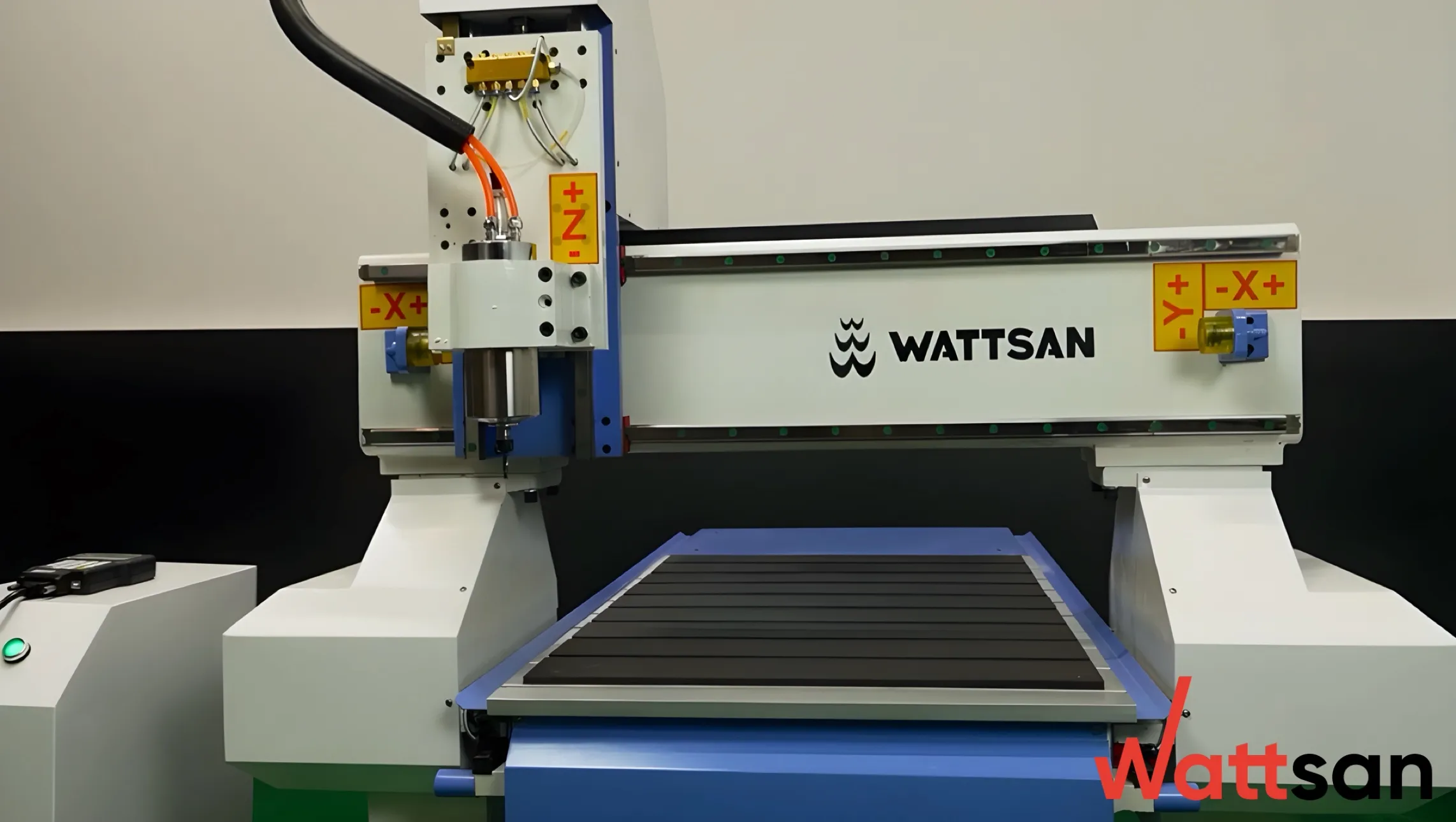

80s手机电影版官网 A1 6090 is a compact but powerful 3-axis CNC milling 80s手机电影版官网 designed for a wide range of cutting, engraving and 3D milling applications. This 80s手机电影版官网 provides exceptional precision and performance in a variety of industries, including woodworking, prototyping, interior and exterior design, and light industry manufacturing.
Designed to work with a variety of materials such as wood, plywood, chipboard, acrylic, plexiglass, aluminum, copper, and composite materials, the 80s手机电影版官网 is an excellent solution for businesses and workshops that require high-quality machining with small dimensions.
Key features and construction
The 80s手机电影版官网 A1 6090 is based on a 1.5 kW water-cooled spindle operating in the RPM range from 6,000 to 24,000 rpm. The spindle is equipped with an ER-11 collet chuck, which ensures compatibility with tools of various diameters suitable for fine engraving or more aggressive milling.

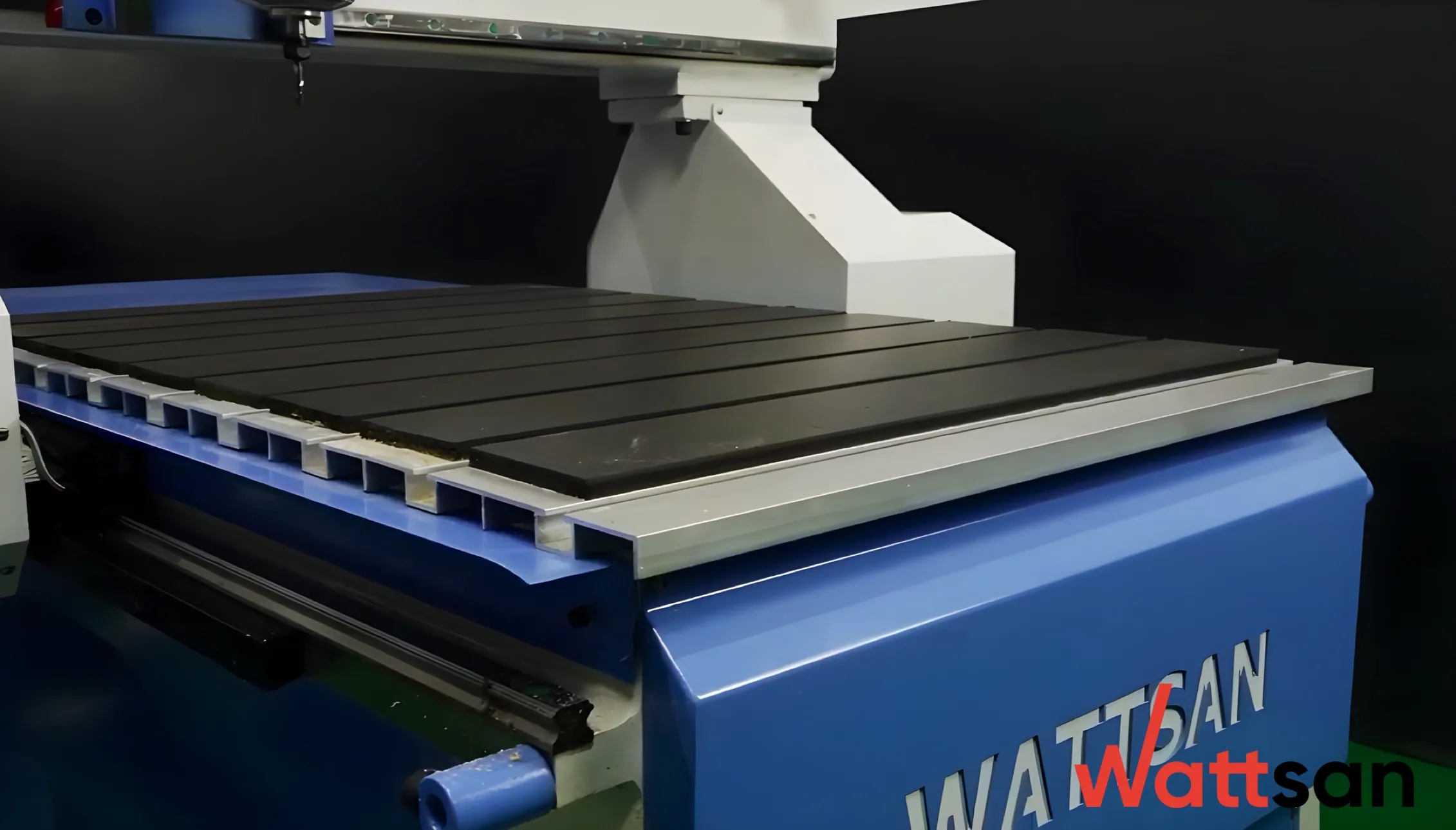

The working area of the 80s手机电影版官网 is 600 × 900 mm, and the Z-axis stroke is 200 mm, which makes it versatile both for processing flat surfaces and for processing moderately deep reliefs. The T-slot slatted table provides a secure clamping surface for workpieces of various shapes and sizes.
The frame structure is made of welded steel profiles with a thickness of 6-8 mm, reinforced with central crossbars to eliminate bending during operation. The entire frame is subjected to heat treatment to relieve stress, which ensures long-term resistance to deformation caused by temperature or mechanical stress.
The portal’s side pillars, made of cast iron with a thickness of 21 mm, and the portal made of aviation aluminum provide rigidity and stability, which is crucial for vibration-free processing.
Motion system and mechanical components
80s手机电影版官网 A1 6090 uses Leadshine two-phase stepper motors paired with 5 m long belt drives (ratio 1:5) To ensure smooth and controlled movement. These belt drives reduce the load on the engine and its wear.
The 80s手机电影版官网 axis travel speed is 25,000 mm/min, and the maximum working speed is 15,000 mm/min. Thanks to HIWIN guides with a diameter of 20 mm, the positioning accuracy of the 80s手机电影版官网 is 0.05 mm. Each guide rail and screw rail are milled, polished and mounted manually using a robot, which ensures high precision and long-term reliability.
A mechanical centralized lubrication system is integrated into the 80s手机电影版官网 to protect the moving parts and extend their service life.
Control system and upgrade options
Join us on Telegram
- Showcases
- Engineer’s advices
- 男女动态无遮挡动态图
- Reviews
Stay tunned with us for the latest news and updates

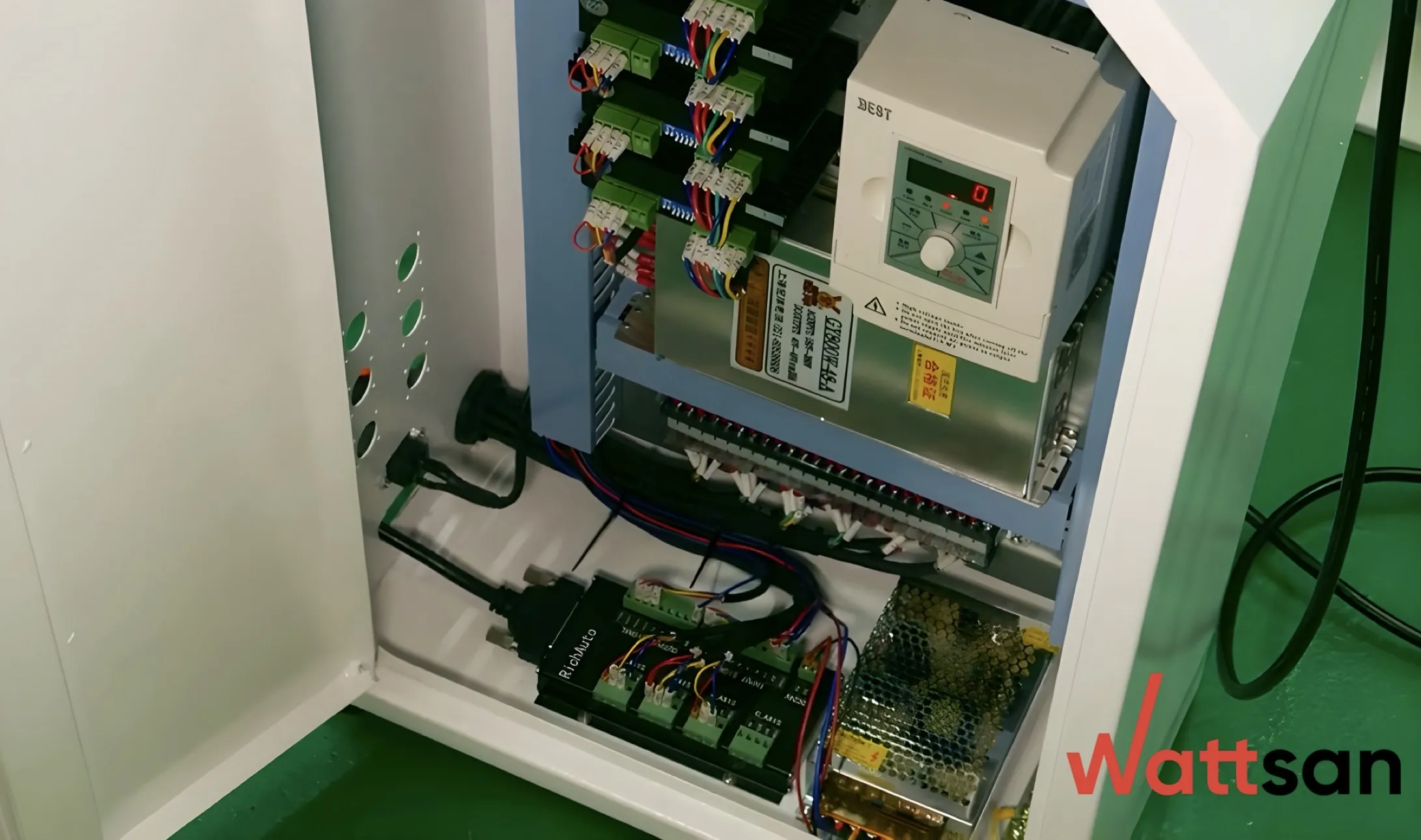

The 80s手机电影版官网 A1 6090 base model is equipped with NC Studio management software, which ensures precise operation with a connected computer using USB or D-Sub interfaces. The 80s手机电影版官网 can also be equipped with a DSP controller. This option provides offline operation using a USB stick, real-time parameter settings, and saving files directly to the controller.
Various additional functions are available to adapt the 80s手机电影版官网 to specific 别揉我奶头~嗯~啊~动漫网站 needs, including:
- Chip removal system
- Aspiration system
- Oil mist cooling system
- Rotary axis for cylindrical workpieces
- Vibration damping supports
- Tool length sensor
- Gantry leveling system
Advanced 2.2 kW and 3 kW spindles are available for users who require more power. These high-performance spindles provide faster processing and are more suitable for materials such as aluminum or copper.
Applications and support
80s手机电影版官网 A1 6090 is widely used in:
- Woodworking and furniture manufacturing
- Interior and exterior decoration
- Creation of prototypes and molds
- Creating souvenirs and signage
- Light industry and plastics processing
The 80s手机电影版官网 is covered by a 1-year warranty, and spare parts are available everywhere, making maintenance and support easier in any region. Customers can choose from a variety of international delivery terms, including CIF, FOB, EXW, and CPT.
80s手机电影版官网 provides online technical support, and if necessary, a qualified specialist from your nearest authorized dealer or directly from the 97xxxx can assist you on the spot.
Conclusion
80s手机电影版官网 A1 6090 combines compact design and industrial-level performance, it is suitable for both small workshops and 97xxxxs. With its robust construction, precision components, and flexibility in retrofitting, this milling 80s手机电影版官网 is great for working with wood, plastics, and even soft metals. Whether you’re creating complex structures or prototyping functional parts, the 80s手机电影版官网 delivers reliable results in any project.
