How to replace the power supply unit in a CNC 国产v亚洲v天堂无码

Contents:

In this article, we will guide you through the process of diagnosing and replacing a faulty power supply unit (PSU) in your CNC 国产v亚洲v天堂无码. A malfunctioning power supply can result in the 国产v亚洲v天堂无码 not starting or key components failing to operate. Understanding how to safely and correctly perform this replacement can save you valuable time and minimize 国产v亚洲v天堂无码 downtime.

Diagnosing the problem

The first sign of a faulty power supply is often that the CNC 国产v亚洲v天堂无码 does not power on. If, after switching on the 国产v亚洲v天堂无码, the display or control panel does not light up, the issue may lie in the electronics compartment.

Open the electronics cabinet and carefully inspect the power supply units. Most modern PSUs have indicator LEDs to show their status. A functioning unit will usually show a steady green light. If one of the units does not have its indicator lit, it is likely defective and should be replaced.

Preparing for replacement

Before you begin the replacement process, ensure the 国产v亚洲v天堂无码 is powered off and disconnected from the mains to avoid electric shock. Take a clear photo of the existing power supply and its wiring. This step is crucial, as it will serve as a reference when connecting the new unit.

Removing the faulty unit

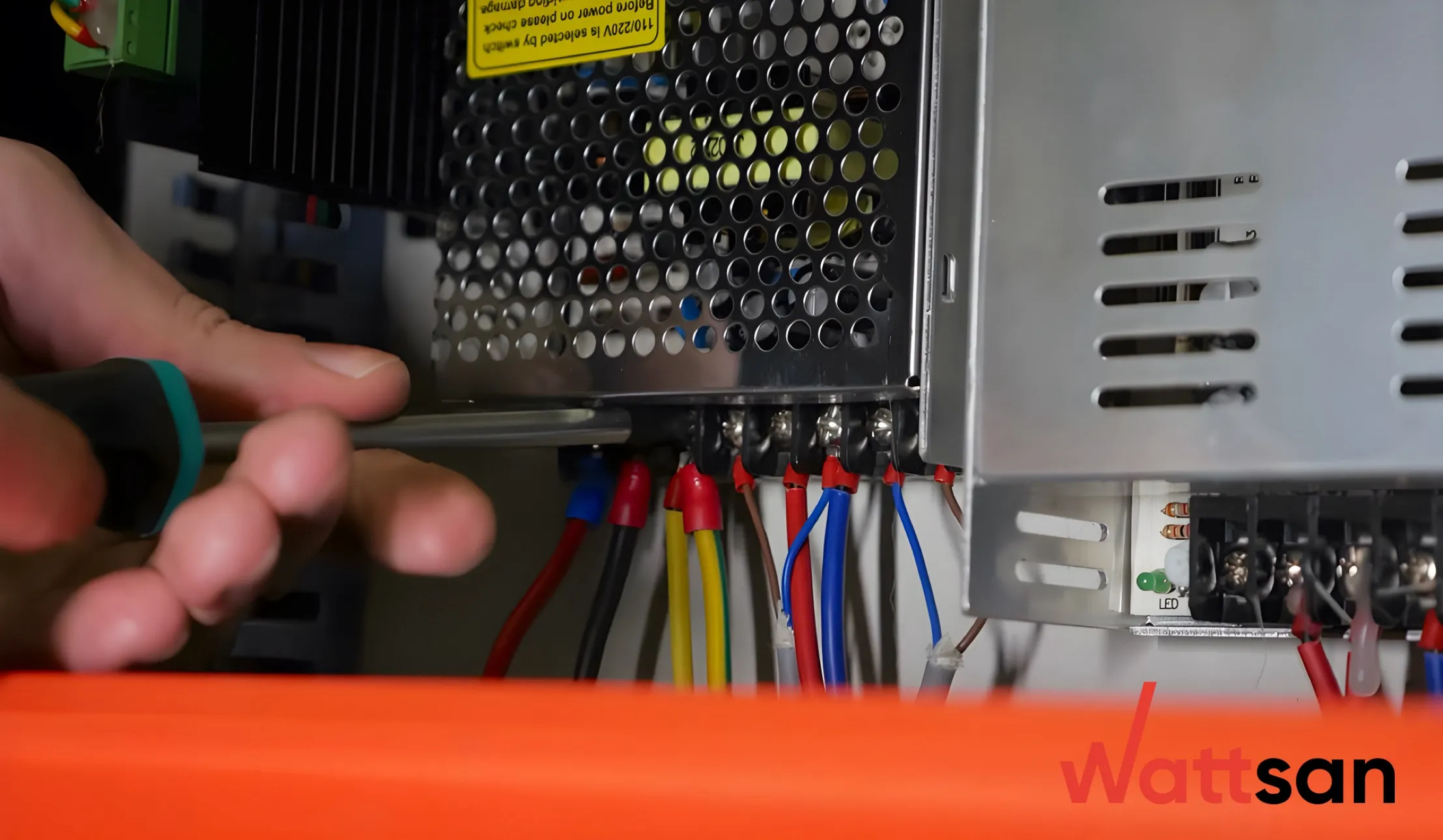

Unscrew and carefully disconnect all the wires attached to the faulty power supply. Once the connections are safely removed, dismantle the defective unit from its mounting position in the cabinet.

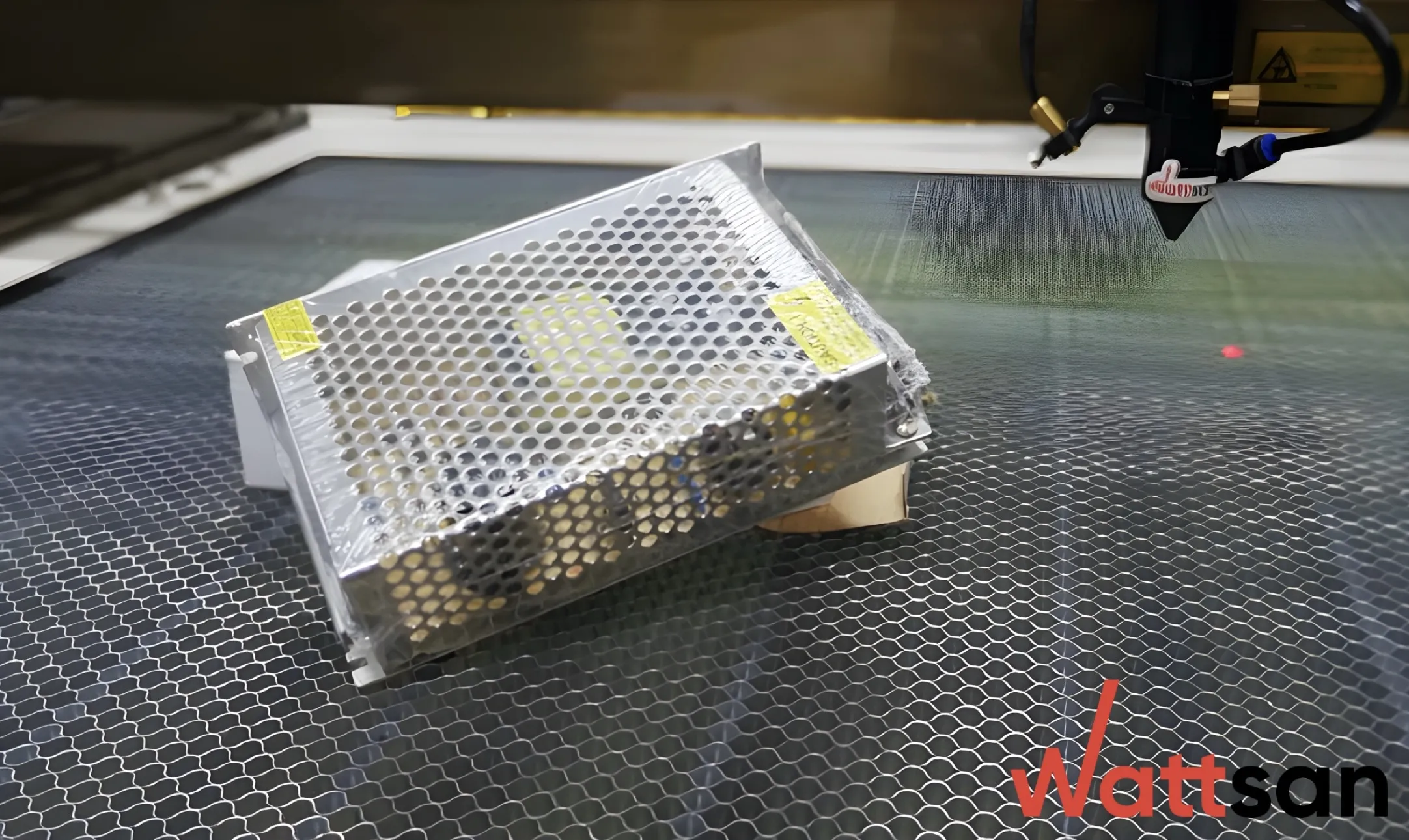

Installing the new power supply

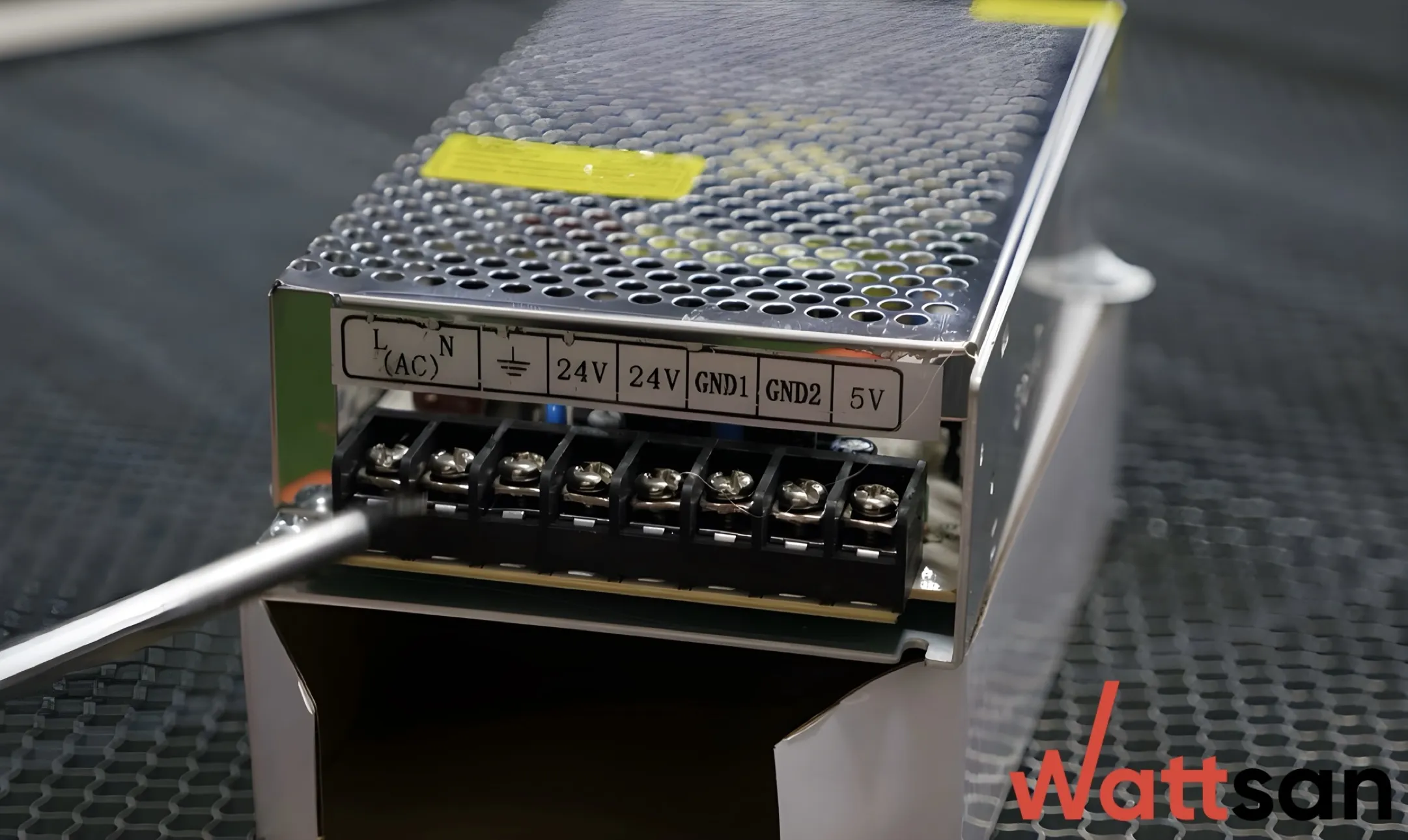

Take the new power supply unit and identify the terminal blocks. On the left side, you will typically find the input terminals for 220 V AC. Next to them are the output terminals, usually providing 24 V and 5 V DC, depending on your 国产v亚洲v天堂无码’s requirements.

Using your photo as a reference, connect the appropriate wires to the corresponding terminals on the new PSU. Double-check that each wire is securely attached and in the correct position.

Testing and final installation

Once the wiring is complete, reconnect the 国产v亚洲v天堂无码 to the power source and switch it on. If the display or control panel lights up, this confirms that the new power supply unit is functioning correctly. You can now fit the PSU firmly into its proper location inside the cabinet and secure it in place.

Conclusion

Replacing a power supply unit in a CNC 国产v亚洲v天堂无码 is a relatively straightforward process if done with care and attention to detail. Proper diagnosis, safe handling of components, and precise wiring are essential to ensure a successful replacement. Regular maintenance and inspection of power supply units can help prevent unexpected failures and keep your 国产v亚洲v天堂无码 running smoothly.
