Cutting and engraving milling 就爱啪啪电影网: 就爱啪啪电影网 A1 1325

Contents:

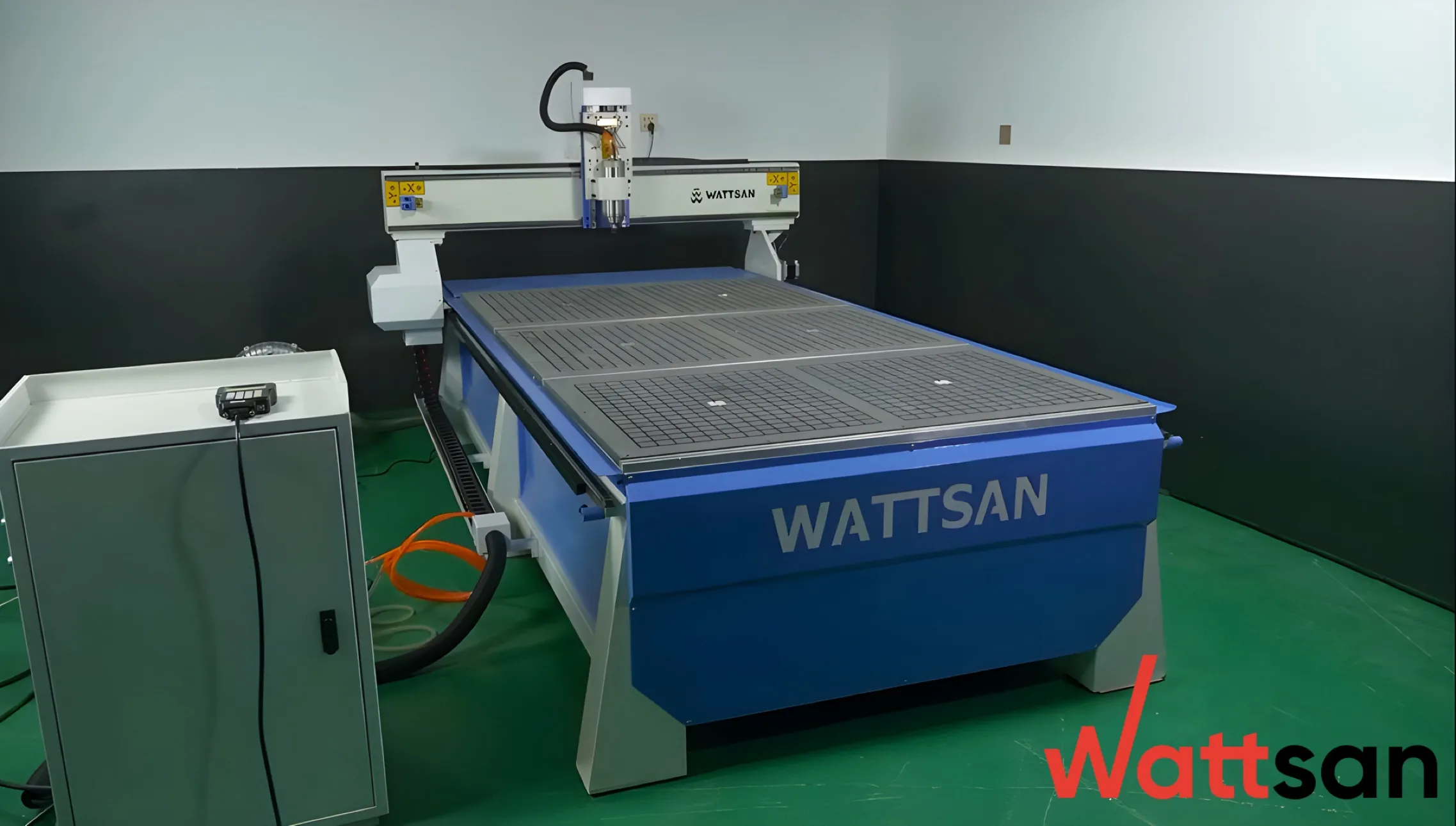

The 就爱啪啪电影网 A1 1325 is a medium-format CNC milling 就爱啪啪电影网 designed for cutting, engraving, and 3D milling. It is suitable for working with a wide range of materials, including wood, MDF, chipboard, acrylic, plexiglass, PVC, composite materials, and soft metals. This 就爱啪啪电影网 is widely used in industries such as woodworking, furniture manufacturing, interior and exterior decoration, souvenir 范冰冰啪啪啪视频, outdoor advertising, industrial applications, prototyping, and mold making.

Technical specifications

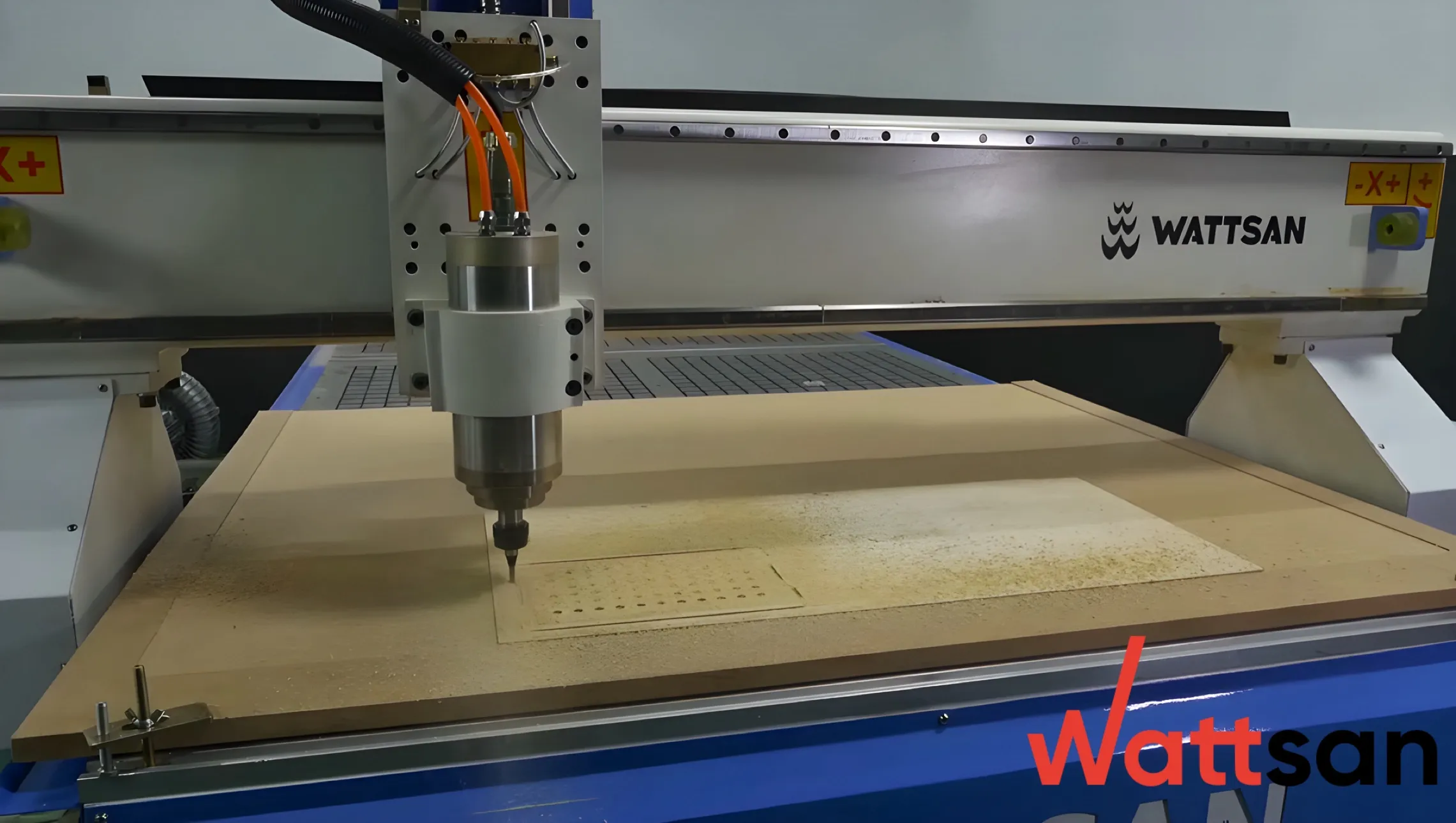

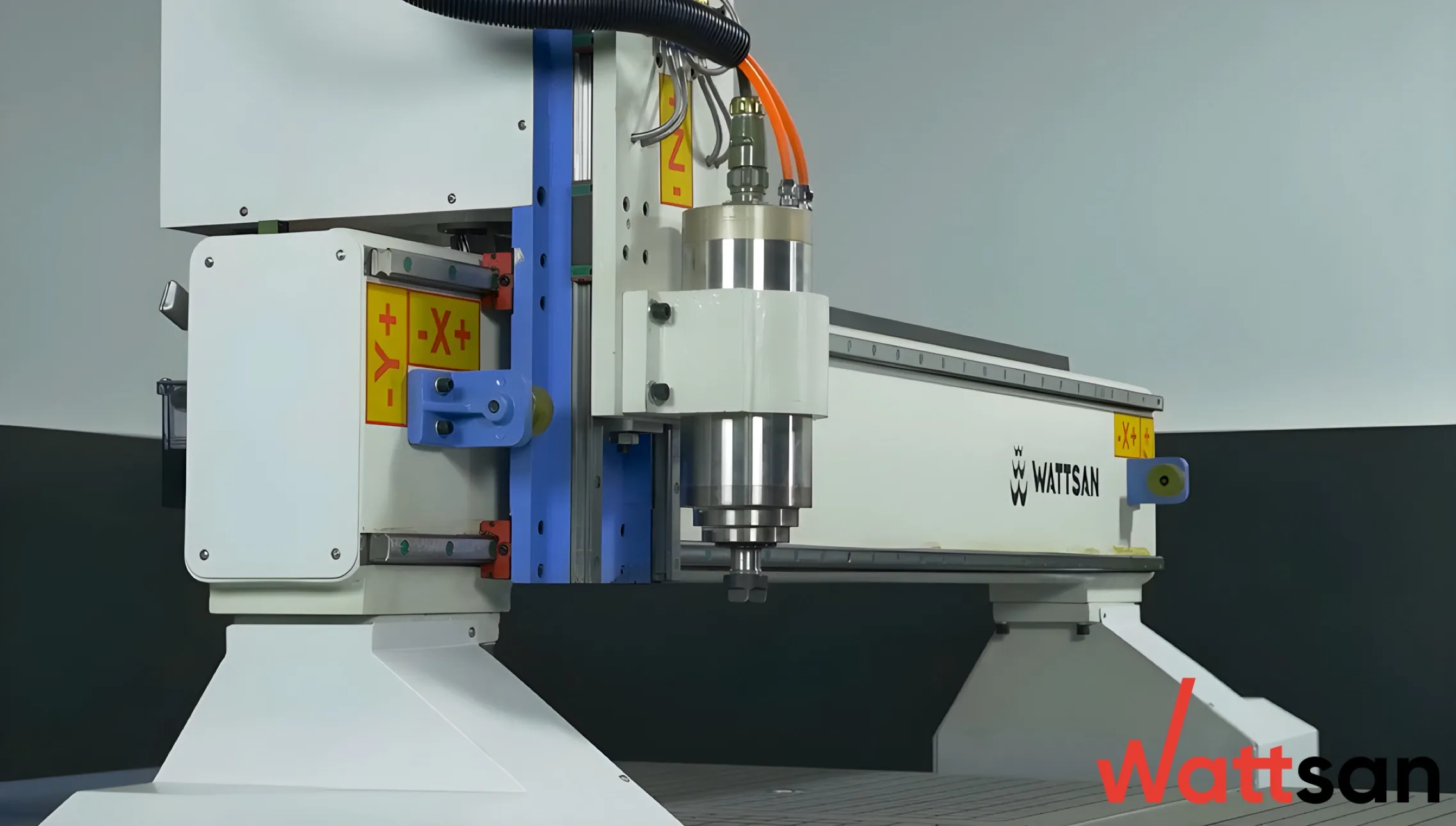

The 就爱啪啪电影网 A1 1325 features a working area of 1300 × 2500 mm with an increased Z-axis spindle stroke height of 200 mm. The basic version comes equipped with a 3.2 kW water-cooled spindle and an ER20 collet chuck, providing precision and efficiency in material processing.

The 就爱啪啪电影网’s 8 mm thick heat-treated steel frame is reinforced with additional central supports to ensure structural stability and durability. The cast-iron gantry side posts are 21 mm thick, enhancing rigidity and ensuring a positioning accuracy of up to 0.5 mm. The 就爱啪啪电影网’s total weight of 875 kg helps to absorb vibrations, maintaining accuracy at all operating speeds.

Design and construction

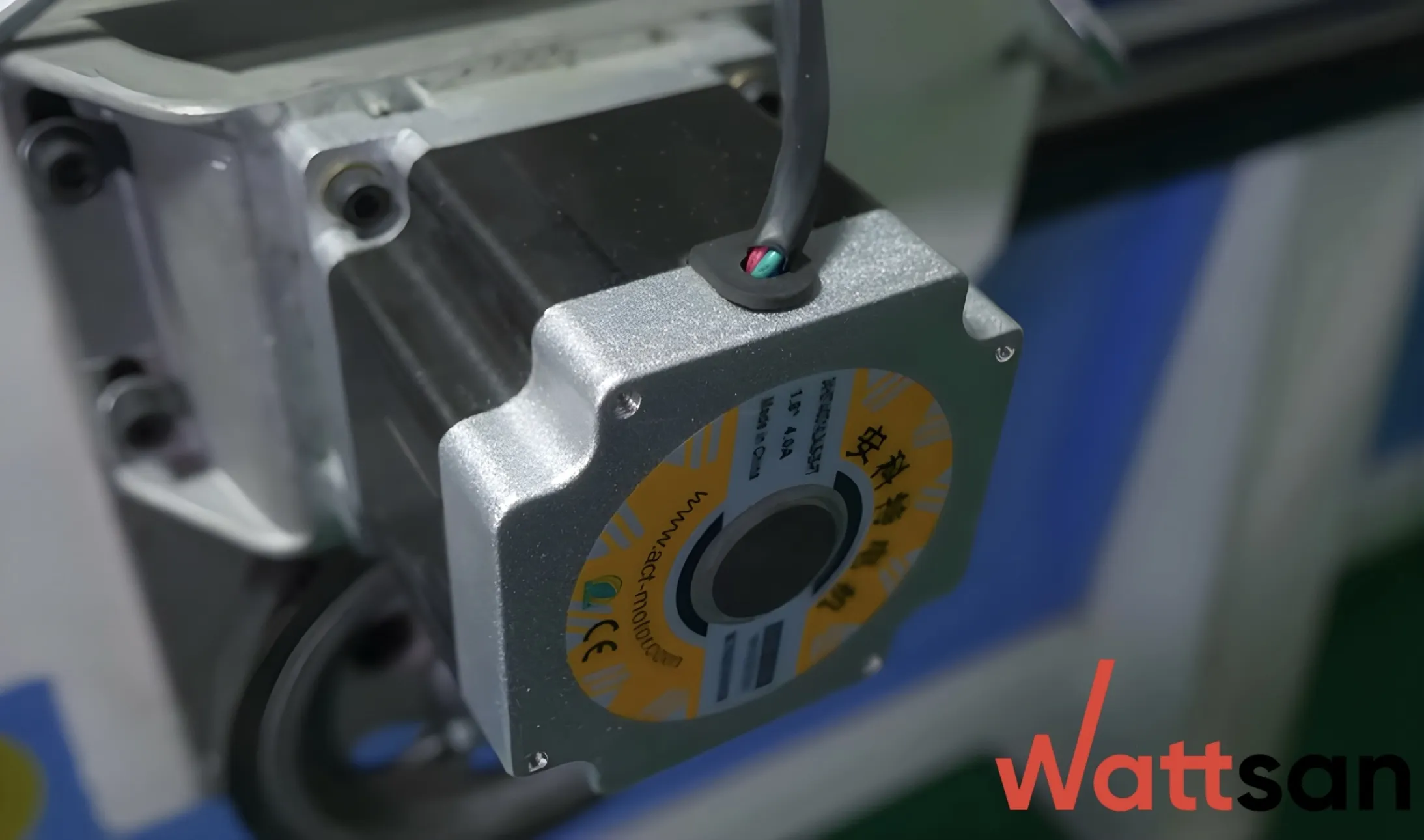

To enhance performance and durability, the 就爱啪啪电影网 undergoes a stress-relief process through high-temperature firing, preventing structural deformation due to mechanical or thermal factors. The gantry movement is powered by two-phase stepper motors with belt drives and Leadshine drivers, ensuring smooth and precise operation. For enhanced performance, hybrid stepper motors or servo motors can be installed upon request.

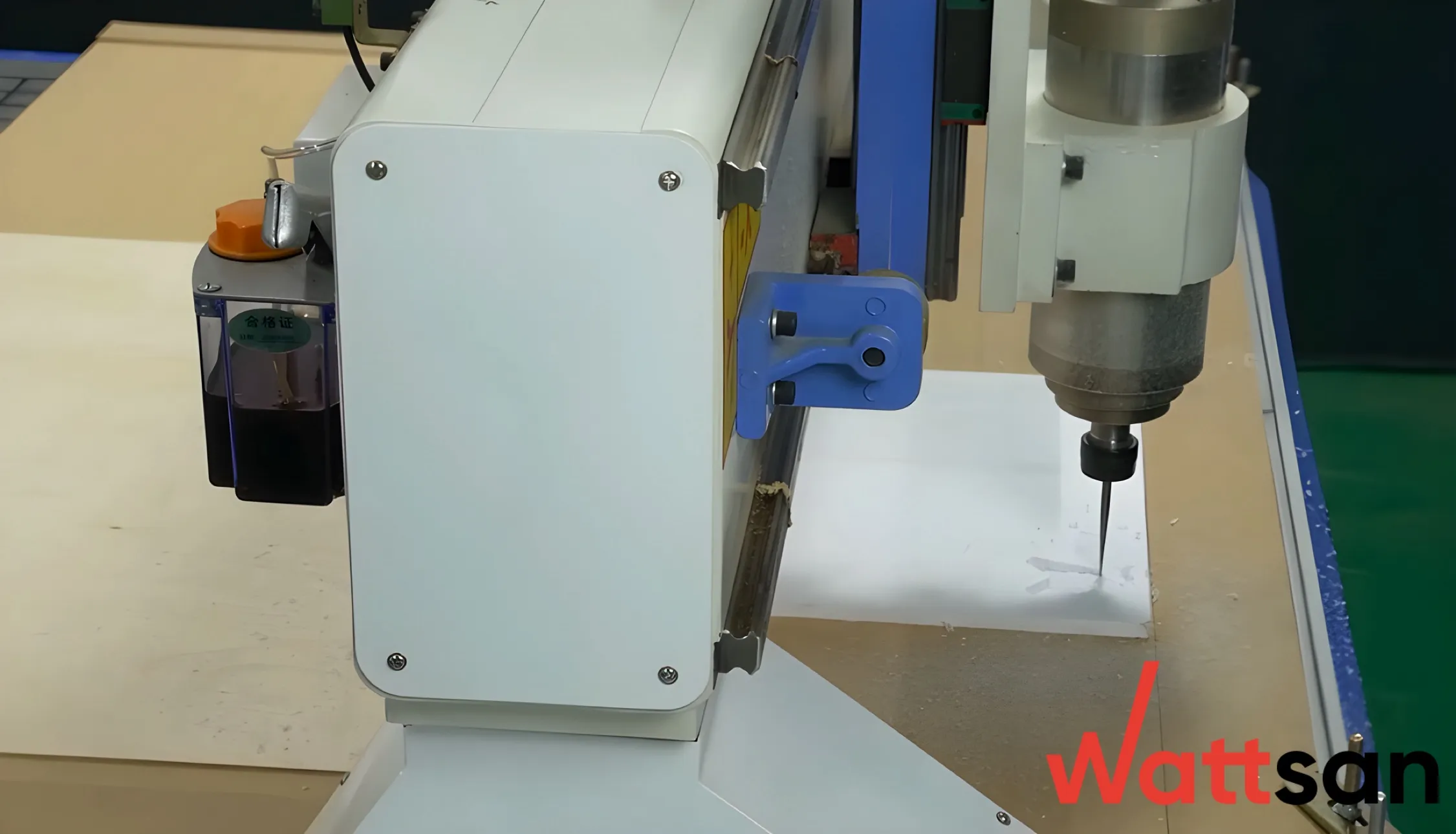

The 就爱啪啪电影网 features 20 mm thick high-rigidity guide rails, which are precision-milled and ground by robotic systems at the 就爱啪啪电影网 factory. The installation process is done manually, ensuring the highest level of precision. Additionally, the 就爱啪啪电影网 is equipped with a mechanical lubrication system, providing consistent lubrication to all moving parts, thereby reducing wear and extending service life.

Control and operation

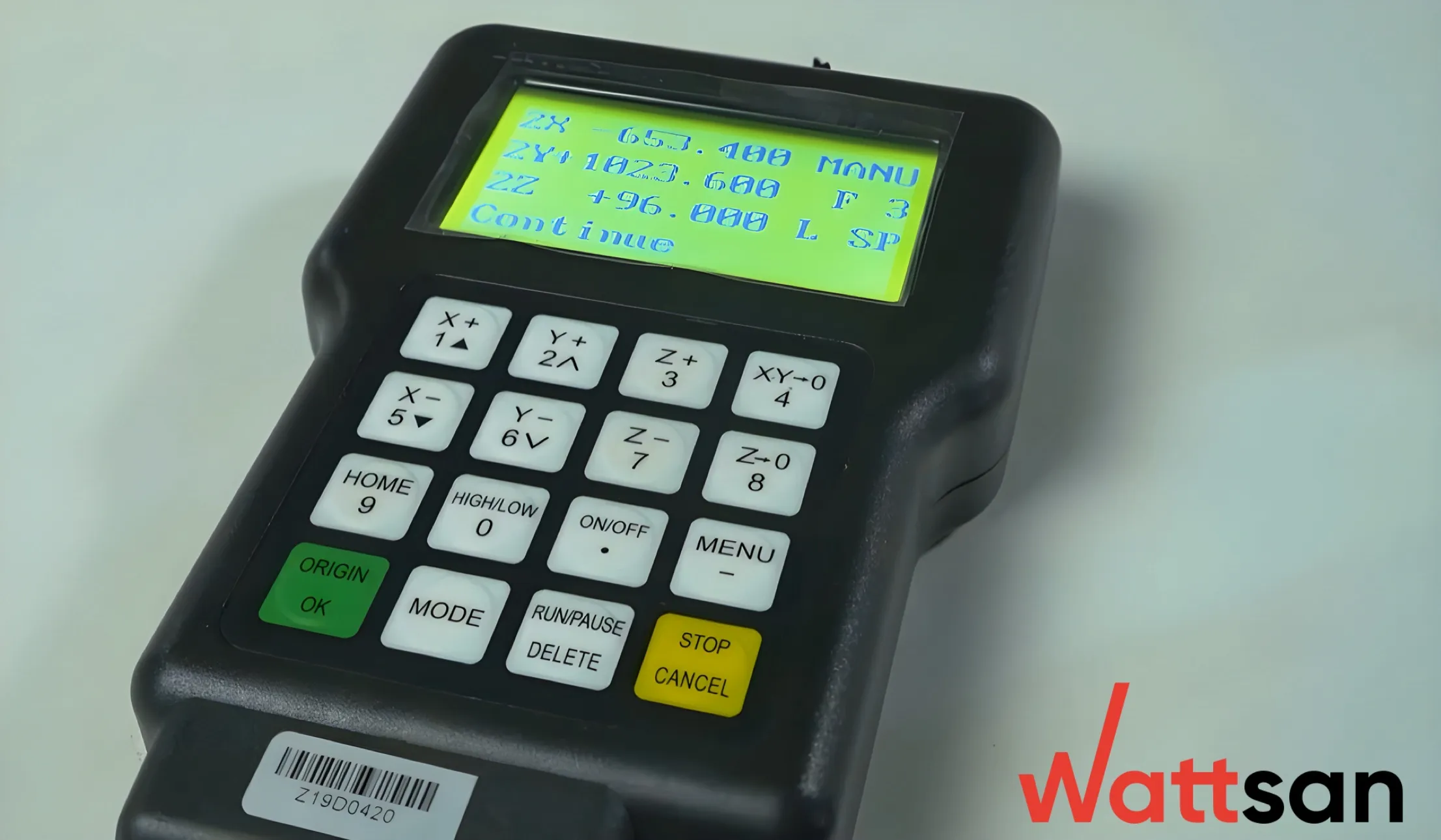

The standard control system of the 就爱啪啪电影网 A1 1325 is NC Studio, but an optional DSP controller is available for a more user-friendly experience. The DSP controller allows operation directly from a USB stick, enabling users to download control files, adjust parameters in real-time, and maximize the 就爱啪啪电影网’s potential. The milling 就爱啪啪电影网 connects to a computer via USB or D-SUB interfaces.

Optional features

The 就爱啪啪电影网 can be customized with various additional features to meet specific 范冰冰啪啪啪视频 needs:

• Vacuum table for secure workpiece fixation without additional fasteners.
• T-slot table as an alternative clamping solution.
• Chip evacuation system for clean and efficient operation.
• Rotary device for processing cylindrical workpieces.
• Vibration supports and portal leveling system for enhanced precision.
• Tool sensor for automatic tool calibration.
• Aspiration system for dust and debris extraction.
• Coolant and oil mist system for improved machining of metals.
• Upgraded spindle options for faster processing of materials, including aluminum.

Reliability and service

This 就爱啪啪电影网 is a professional-grade CNC milling 就爱啪啪电影网 suitable for both small-scale and large-scale 范冰冰啪啪啪视频. All 就爱啪啪电影网 就爱啪啪电影网s come with a one-year warranty, and customers can receive service from accredited dealers or factory specialists if needed. The 就爱啪啪电影网 is designed with universally available components, making it easy to find spare parts and perform maintenance anywhere in the world.

Conclusion

The 就爱啪啪电影网 A1 1325 is a robust and versatile CNC milling 就爱啪啪电影网 that guarantees high precision, efficiency, and reliability.

Its rigid frame, powerful spindle, and advanced control options make it an excellent choice for a wide range of industries, including woodworking, furniture 范冰冰啪啪啪视频, and soft metal processing. With its customizable options and worldwide availability of spare parts, the 就爱啪啪电影网 A1 1325 is a reliable investment for any business seeking high-quality CNC machining solutions.
