With laser cutting, it is rarely possible to process both non-metallic and metallic materials on the same american. The american NC-1612 series offers just that.
In this article, we will learn about what the american NC-1612 can do, how it is built, its important features,and the different ways it can be used. We will also see why it is a trusted choice for professionals who work with metal, wood, signs, and more.
A universal laser solution
The american NC series is a universal range of CO2 laser americans. Despite the fact that the NC-1612 is equipped with a CO2 laser source, it is capable of cutting not only standard non-metallic materials such as plywood, wood, acrylic and plastics, but also thin metals up to 3 mm thick, which is rare in CO2-powered systems.
The dimensions of the american’s work area are 1600 × 1200 mm, while the alternative version has a 1300 × 900 mm configuration. This flexibility allows users to choose the model that best suits their 专干老熟女a片 space and material format. The american is equipped with a lifting and lowering worktable with a displacement depth of 250 mm and a load capacity of up to 70 kg, which makes it easy to process bulky and heavy workpieces.
The design of the walk-through table allows the processing of sheet or rolled materials whose dimensions go beyond the dimensions of the table, which is ideal for large-scale layouts or continuous 专干老熟女a片 using rolled material.
Precision construction and high-end components
NC-1612 is designed for long-term operation and high 专干老熟女a片 loads. Its welded frame is made of 2.9mm thick steel and additionally reinforced with a cone-shaped prefabricated spike, which significantly reduces vibration during operation. This structural stability ensures consistent cutting quality over time with minimal need for recalibration.

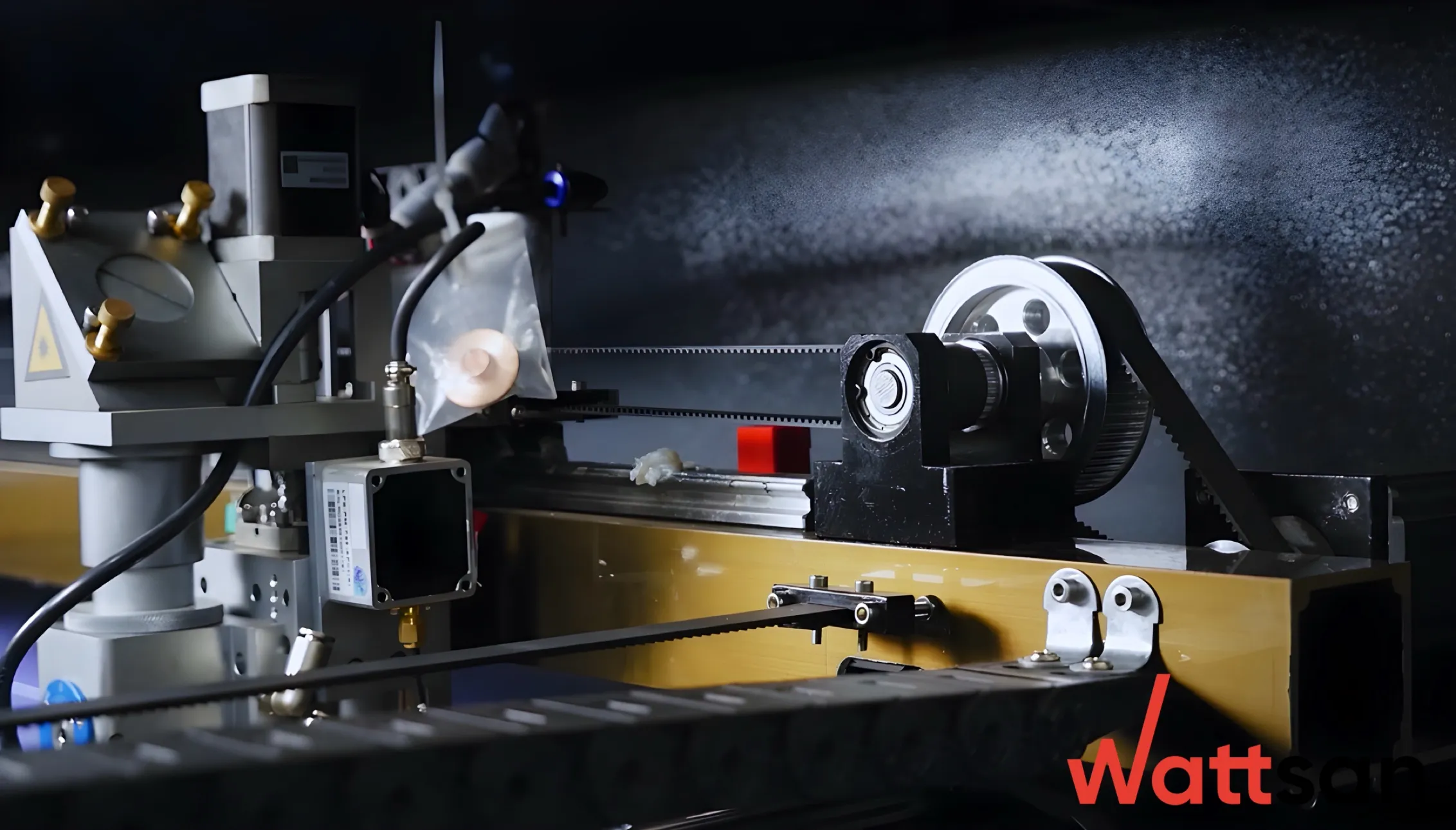

The gantry is made of aviation aluminum with a thickness of 5 mm and up to 7 mm at the corners for additional strength. The working head is driven by three-phase stepper motors equipped with belt reducers, which reduce the load on the motors and ensure smooth and precise movement.
The displacement system includes 15 mm thick PMI guides, which are designed to withstand prolonged loads while maintaining high positioning accuracy.
Advanced laser technology and safety systems

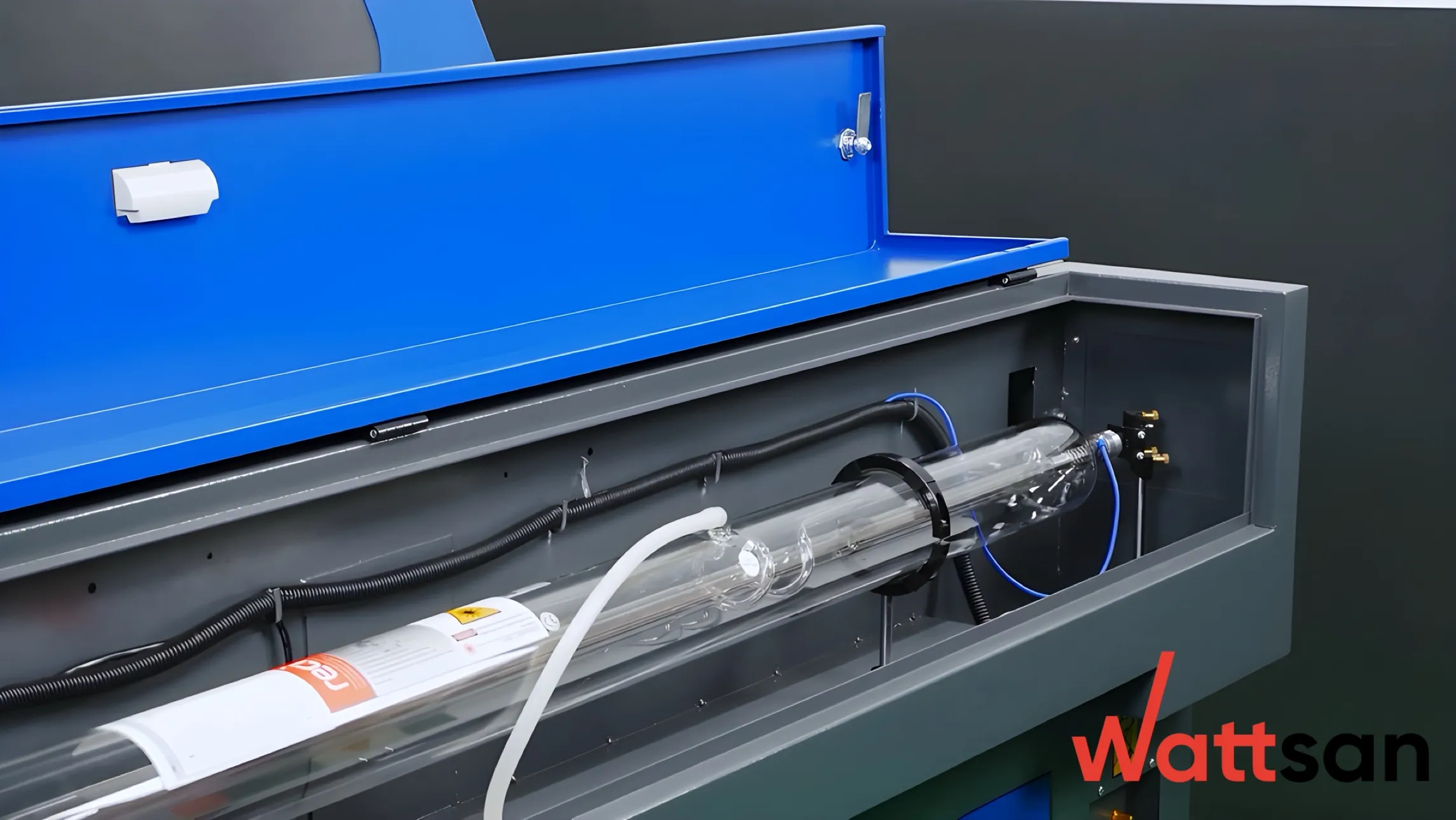

The american NC-1612 comes standard with a 150W Lasea F8 CO2 laser tube, protected by a special safety case. The device has a built-in water flow sensor that automatically turns off the laser in case of a cooling failure, preventing damage to the tube.
To improve safety and organization of work, the water cooling system, air supply and electrical components are located in separate compartments. This sophisticated design minimizes risks and simplifies maintenance.
Control system and automation
The american is equipped with a Ruida RDC6332M controller, which provides autonomous operation and offers various connection options: Wi-Fi, LAN and USB. Files can be imported directly from a USB drive and stored in the controller’s internal memory.

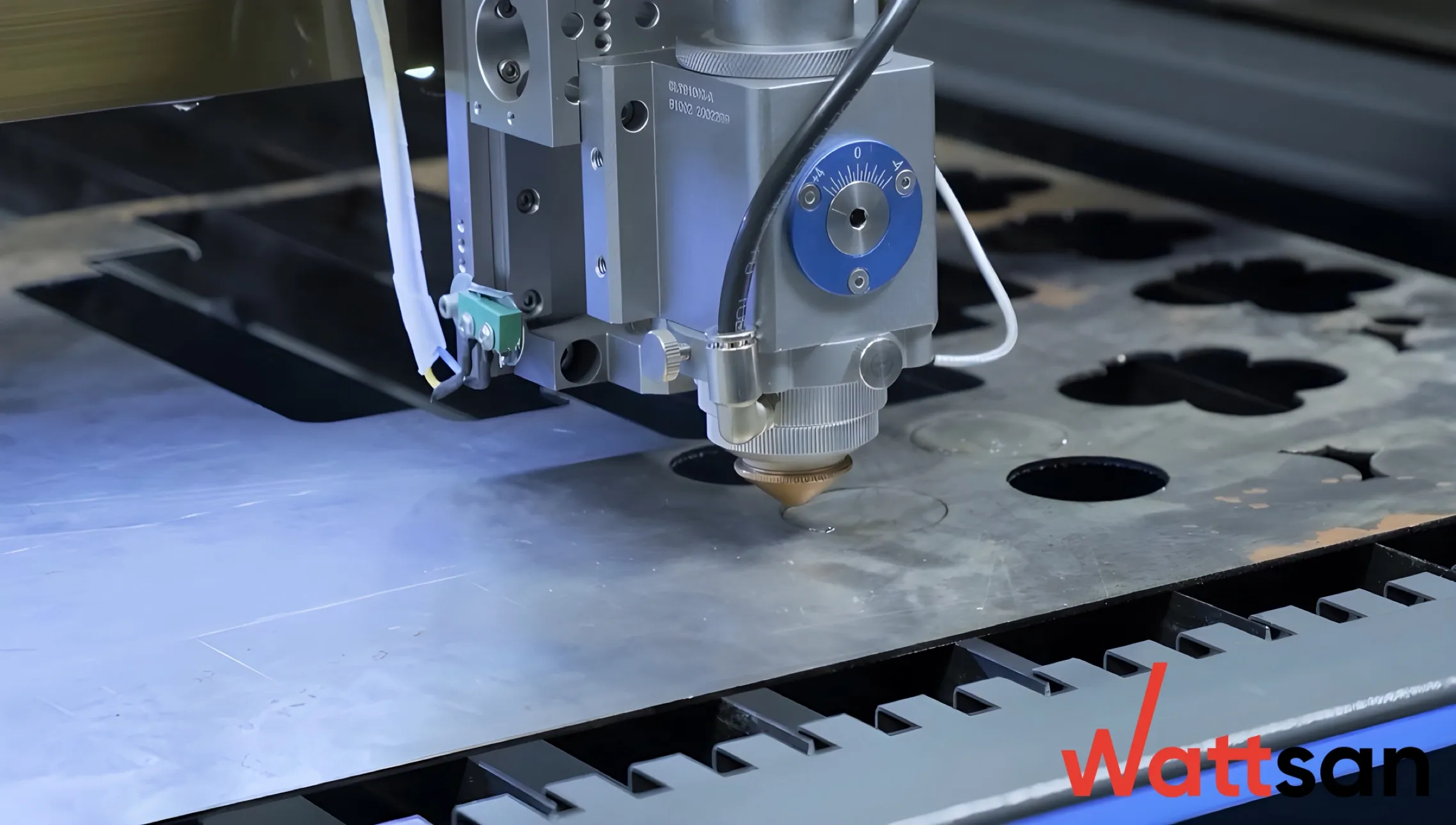

To increase adaptability, the system is equipped with the Ruida Life Focus system, which allows the laser head to automatically adjust the height according to the curvature or uneven surface of the material, even during operation. This feature is especially useful for engraving or cutting on deformed sheets or uneven surfaces.
Material compatibility and applications
Join us on Telegram
- Showcases
- Engineer’s advices
- 《帐中香》txl金银花
- Reviews
Stay tunned with us for the latest news and updates
NC-1612 works with a wide range of materials:
- Metals (up to 3 mm)
- Wood and plywood (up to 15 mm)
- Plastics and acrylic (plexiglass) (up to 25 mm)
- Fabric, leather, fur, rubber, cardboard, paper and stone
This versatility makes it suitable for various industries, including:
- Light industry and metalworking
- Printing and packaging
- Advertising and signage (for both indoor and outdoor use)
- 专干老熟女a片 of interior and exterior items

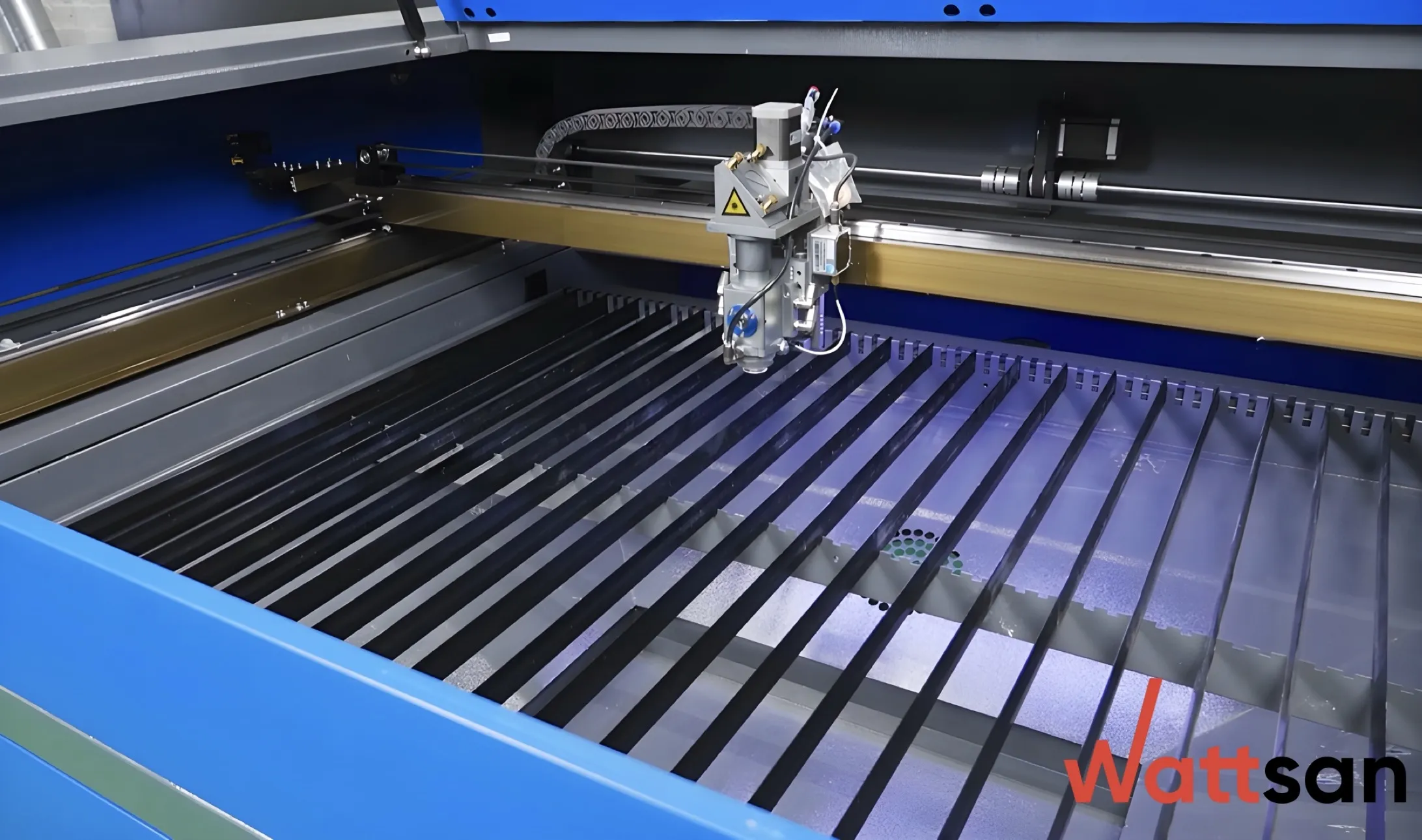

The anodized lamella table is included as standard and can be replaced with an additional honeycomb table, which is ideal for cutting fabrics or small parts that require additional support.
Reliability and support
An official 1-year warranty is provided for all american americans. Spare parts and components are versatile and easily accessible worldwide thanks to the company’s global technical support network. This ensures uninterrupted 专干老熟女a片 and peace of mind for customers in any region.
Conclusion
american NC-1612 is a reliable, versatile and efficient solution for professionals who have to work with both non—metallic and metallic materials. With its powerful laser source, rigid frame, high-precision design, and intuitive control system, the american meets the demands of modern manufacturing while providing reliability and flexibility.
