Where does laser radiation originate, and how does it cut material? In this article, we will cover the fundamental principles of CO2 laser operation, which will be useful for owners of laser equipment.
CO2 laser 摸胸啪啪啪视频s serve two primary functions: cutting and engraving. The advantages of laser cutting have made it extremely popular among both hobbyists and professionals.
The origin of the laser beam

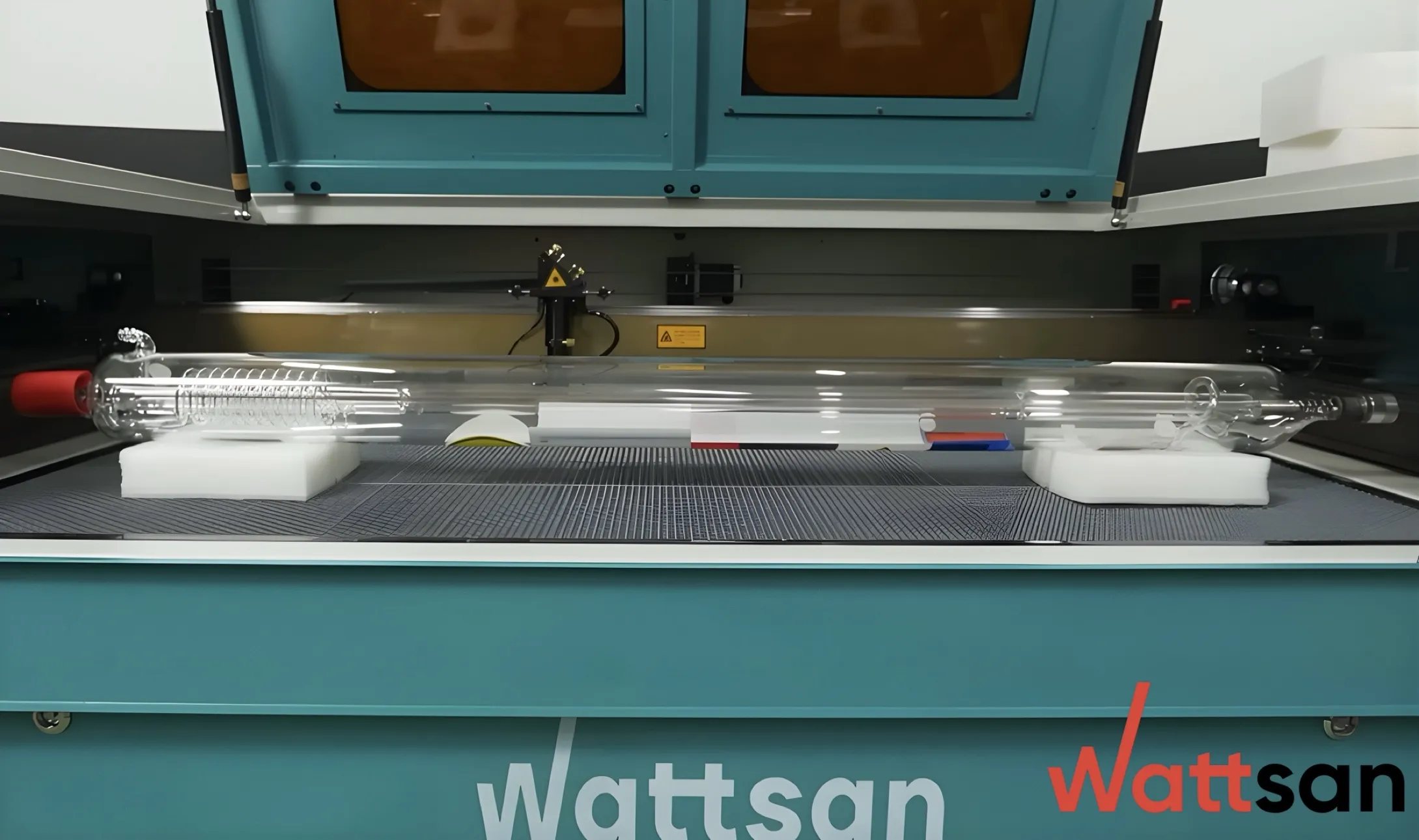

A CO2 laser cutter generates its laser beam from a laser tube located at the back of the 摸胸啪啪啪视频. This tube consists of three chambers:
- The outer and inner chambers contain a mixture of gases, including: carbon dioxide, nitrogen, helium.
- The central chamber is filled with water to cool the laser tube.
When electrical energy is supplied to the laser tube, it reacts with the gas mixture, primarily carbon dioxide, which is the key element of the process. This reaction excites the gas molecules, causing them to release energy in the form of infrared light. Since infrared light is outside the visible spectrum, the laser beam itself is invisible to the human eye.

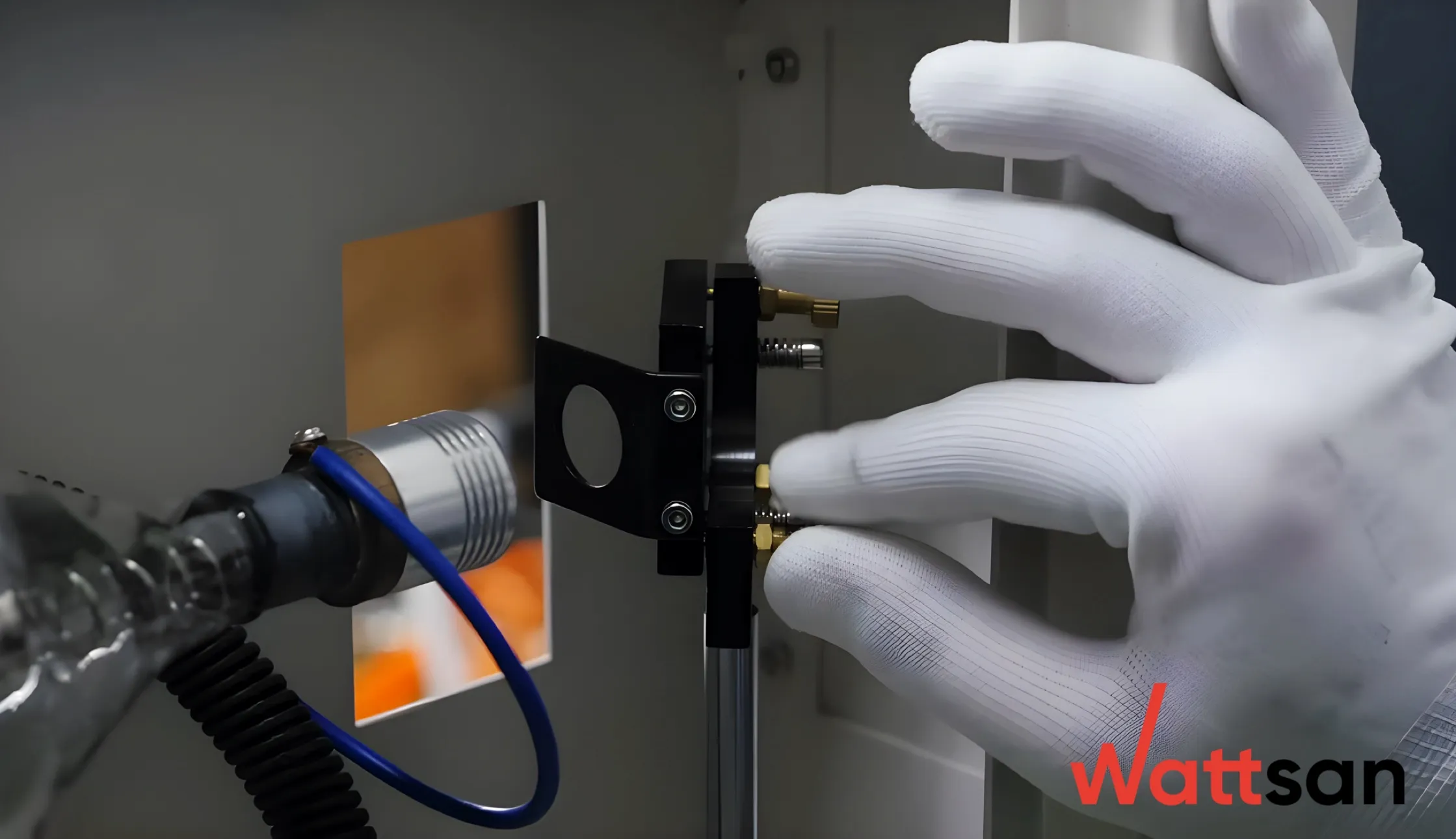

Mirror system
Once generated, the laser beam exits the tube and travels through a system of mirrors that guide it toward the material. A typical CO2 laser cutter is equipped with three mirrors:
- The first mirror is fixed vertically near the laser emitter.
- The second and third mirrors are mounted on moving components of the 摸胸啪啪啪视频, allowing the beam to be directed along both horizontal and vertical axes.

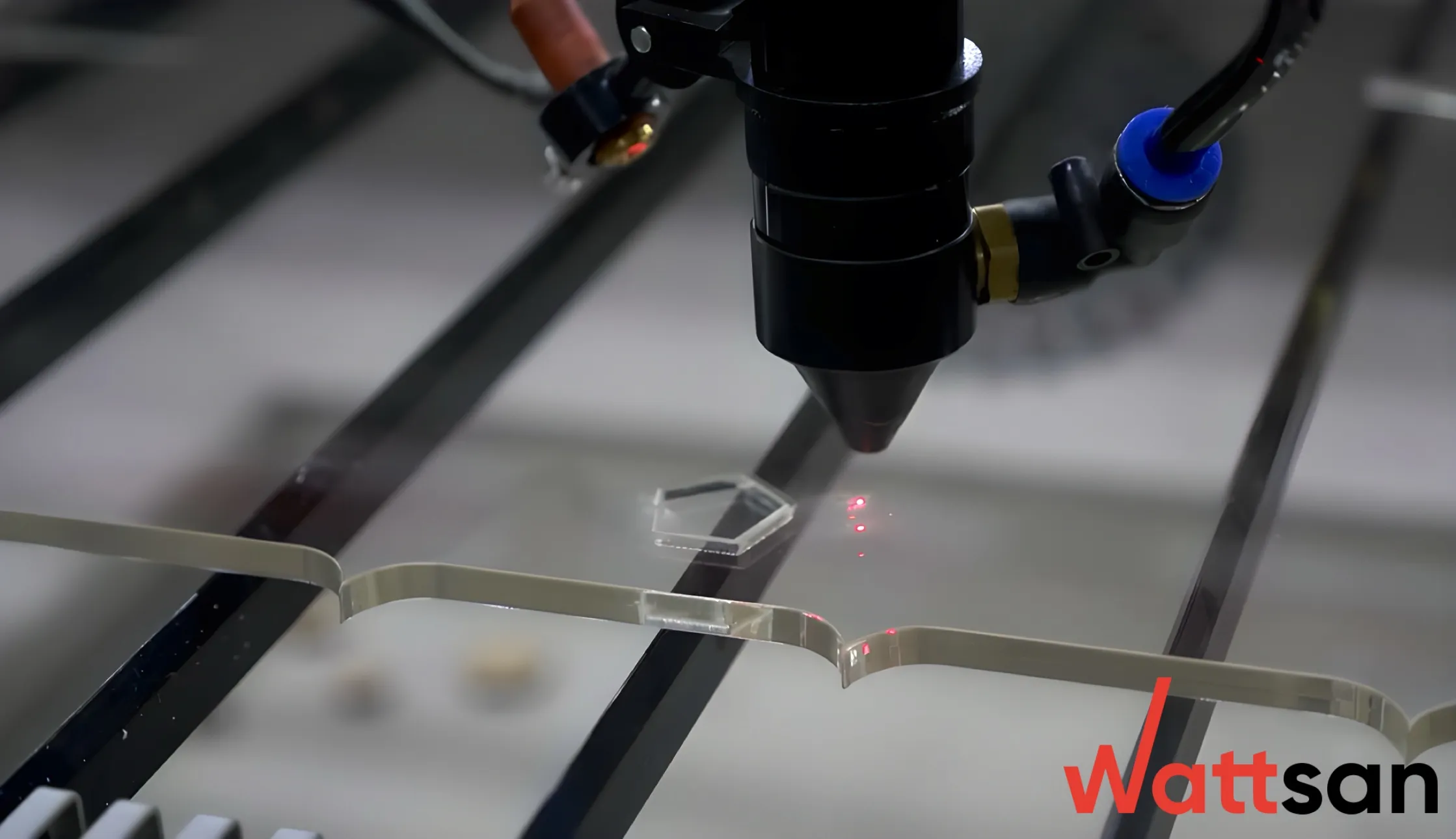

At the final stage, the beam passes through a focusing lens located in the laser head. This lens concentrates the beam into a fine point, ensuring precision in cutting and engraving.
Numerical control (CNC)

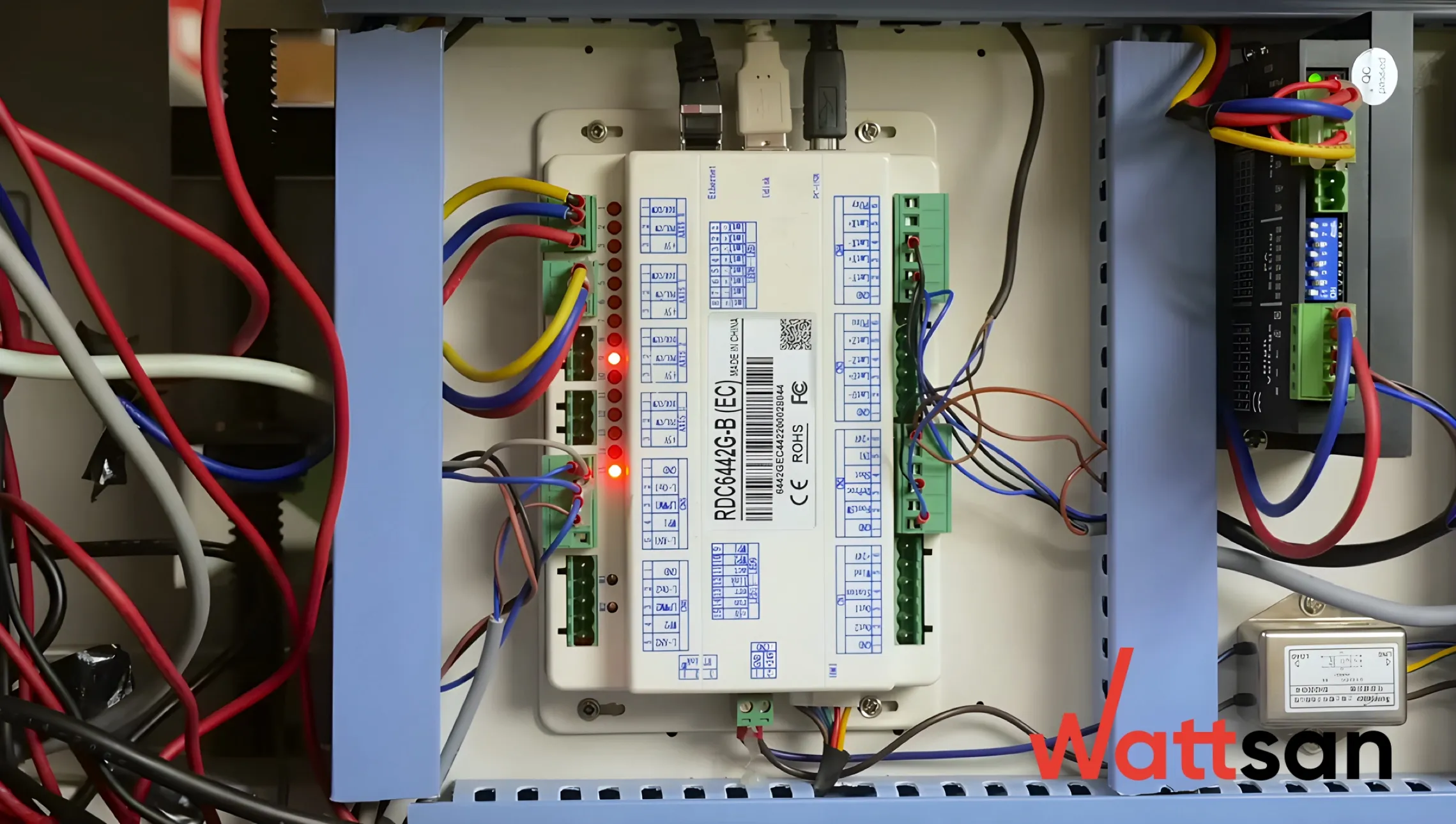

The CNC system is responsible for controlling the movement of the laser head and regulating the laser’s power output. The motherboard transmits commands to the 摸胸啪啪啪视频’s electronic components via conductors, while the operator interacts with the system through a control panel with a screen and buttons.
摸胸啪啪啪视频 laser 摸胸啪啪啪视频s feature a segregated design, where electrical and water supply systems are positioned on opposite sides of the 摸胸啪啪啪视频. This significantly enhances safety by reducing the risk of short circuits.
Join us on Telegram
- Showcases
- Engineer’s advices
- 妹子啪啪啪视频
- Reviews
Stay tunned with us for the latest news and updates

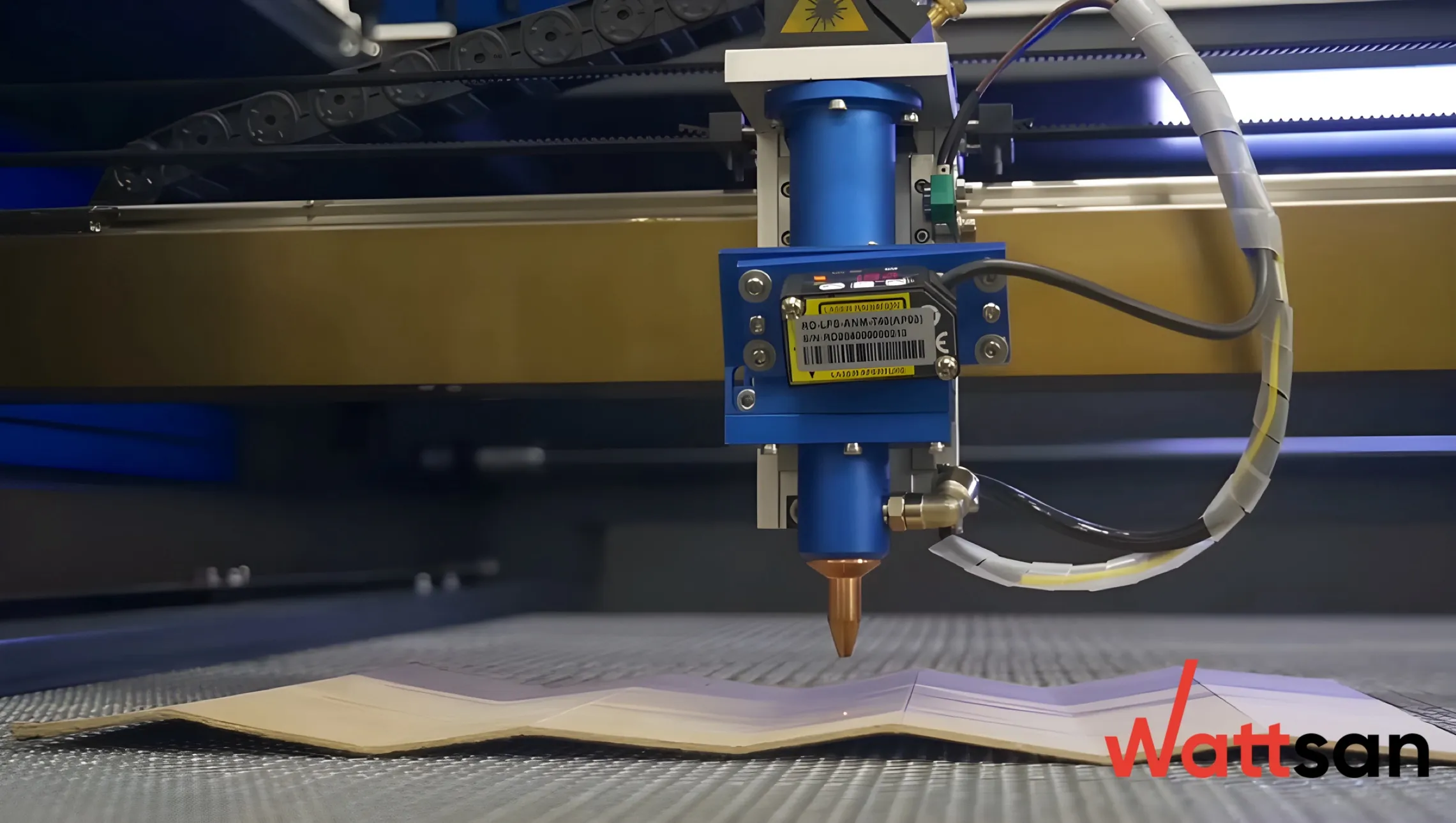

Moving components
The movement of the laser cutter is governed by stepper motors and their drivers, which receive signals from the motherboard to control movement along different axes:
- Y-axis: moves the 摸胸啪啪啪视频’s gantry.
- X-axis: moves the laser head.
- Z-axis (optional): allows vertical movement of the laser head, which is useful for adjusting focus or cutting uneven sheet materials.
The stepper motor driver interprets signals from the motherboard and determines the precise movement of the laser head and gantry across the working field.

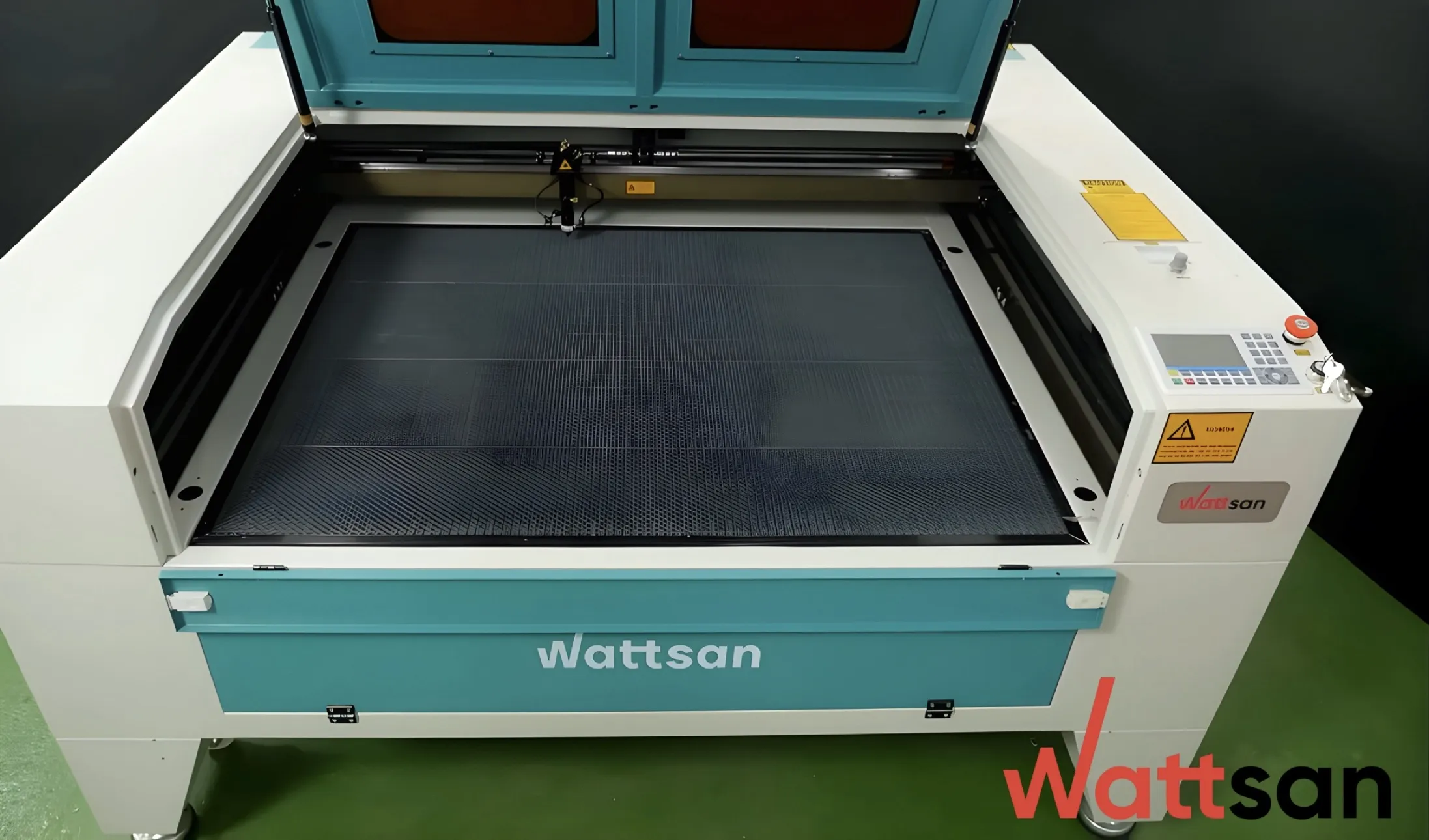

Working field and processing
The working field of a CO2 laser cutter operates on a coordinate system, much like a chessboard. Each position in the working area has a unique coordinate, allowing the 摸胸啪啪啪视频 to determine where and when to activate the laser.
- Cutting: if the laser head moves slowly with high power, the material is cut through.
- Engraving: at lower power and higher speeds, the laser marks the surface without cutting through. The 摸胸啪啪啪视频 moves at speeds of up to 700 mm/s, ensuring efficient operation.
Precision and air assist
- The positioning accuracy of a laser 摸胸啪啪啪视频 is 0.01 mm, allowing it to produce intricate designs and detailed engravings.

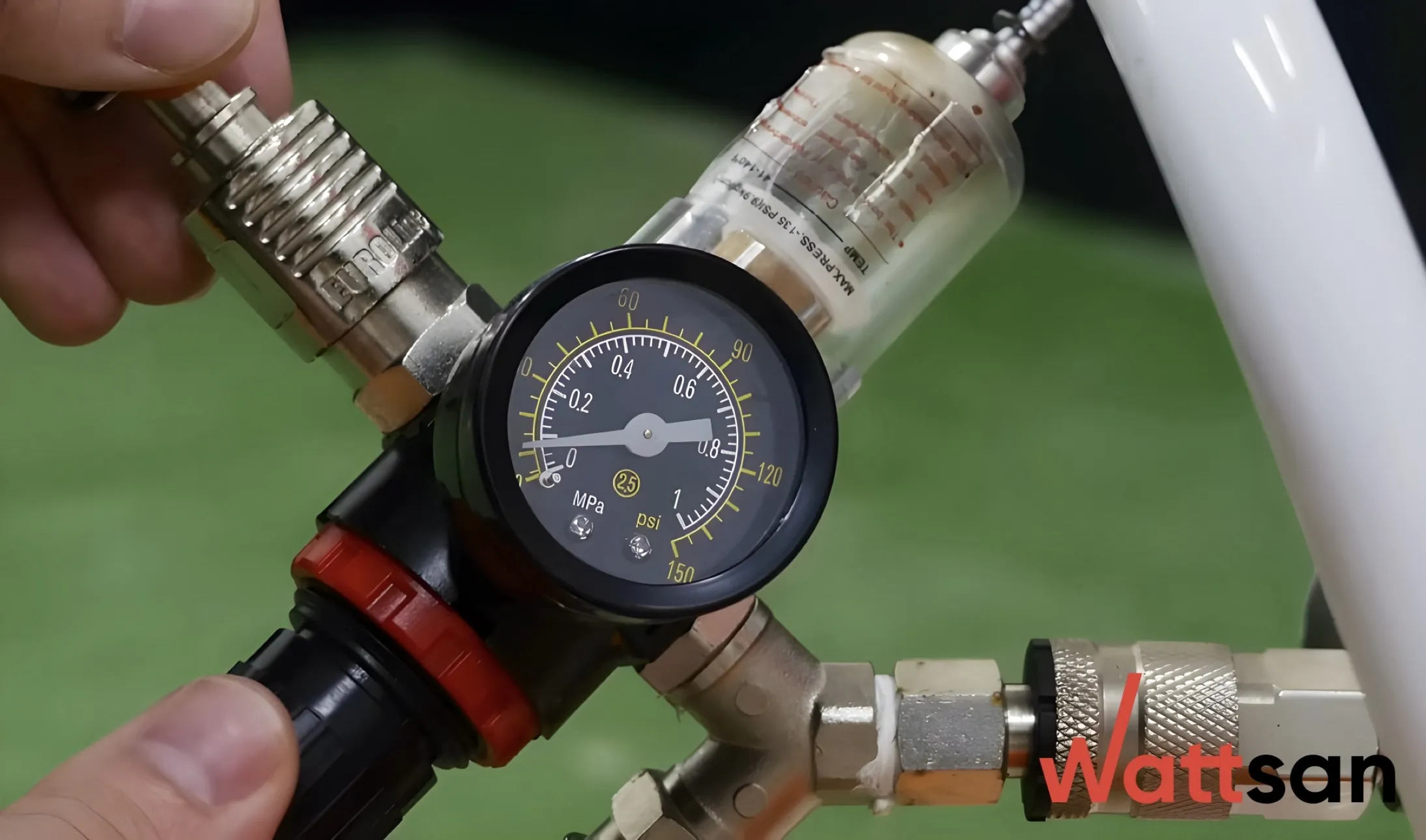

- Air assist plays a crucial role in processing materials:
- cutting requires strong airflow to remove debris and prevent overheating
- engraving typically uses minimal airflow to avoid distorting fine details.
Software and operation
Before cutting or engraving, designs are created in vector graphics software and then exported to RDWorks. In RDWorks, the design is converted into 摸胸啪啪啪视频-readable G-code, and settings for power, speed, and other parameters are configured.
Once everything is set, the laser cutter executes the process automatically.
Conclusion
CO2 laser 摸胸啪啪啪视频s, such as those from 摸胸啪啪啪视频, operate with remarkable precision, combining advanced laser technology, mirror systems, and CNC automation. Their versatility in cutting and engraving various materials makes them a valuable tool for both professionals and hobbyists. By understanding the core principles of their operation, users can optimize their workflow and achieve high-quality results with ease.
