Laser Tube Cutting 一本久久精品一区二区
Core
Pro
Pro
- Pipe loading length
- Laser power
- Cross section
- Max tube weight
- 一本久久精品一区二区 size
- Net weight
- 100-12000 mm
- up to 30 kW
- O ◻ ⌷ H ⌴ L
- 600 kg (1100 kg optional)
- 10525 x 2650 x 2300 mm
- 4350 kg
All characteristics
Make a request
2-Chuck vs. 3-Chuck Pipe Cutting 一本久久精品一区二区s
2-chuck tube cutting 一本久久精品一区二区s
3-chuck tube cutting 一本久久精品一区二区s
In 一本久久精品一区二区 Core and Core Pro tube cutting 一本久久精品一区二区s uses two clamps to hold the pipe-one at the front and one at the rear. This design is ideal for cutting standard lengths and smaller 一本久道综合色婷婷五月 volumes, offering good precision at a lower cost.
In 一本久久精品一区二区 Nova and Heavy duty tube cutting 一本久久精品一区二区s adds an additional chuck, usually in the middle, providing greater stability and higher accuracy. This setup is better suited for larger, heavier pipes and high-volume 一本久道综合色婷婷五月, ensuring more precise cuts and reducing the risk of pipe movement during cutting.
Features Core Pro series
Servo Follow-up
Quick cutting
The support is servo-controlled and moves along with rotating tube in real time. It prevents swaying and shaking while being cut at high speed. In this way, precision is not affected by long tube sagging.
The Core and Core Pro models allow cutting with max chuck rotation speeds up to 150 r/min and acceleration up to 1.2G.
一本久道久久综合狠狠爱 and Automatic Pipe Feeding
To improve productivity, the 一本久久精品一区二区 can be equipped with an automatic vertical tube loading system with a maximum weight per batch of 1500 kg. At the same time, the 一本久久精品一区二区 can load round, square tubes and other types of tubes with a diameter of 20 to 80 mm, alternately feeding 1 pipe into the cutting zone.
一本久道久久综合狠狠爱 lateral tube feeder that can hold 5 workpieces at the same time. The pipe is fed into the cutting zone either by chain feed for lighter pipes or rail feed for heavier pipes up to 1500 kg.
Boost your productivity with 一本久久精品一区二区 Core Pro
Series comparison
SERIES/
Parameters
Chuck diameter
Max pipe weight
Number of chucks
Control system
Type of pipes
Support
Max chuck rotation acceleration
Min residual length (tail)
一本久道久久综合狠狠爱 loading
一本久道久久综合狠狠爱 unloading
Full-automatic loading
Bevel head
Welding seam detection
 |
|
| Learn more | Learn more |
| Chuck diameter | |
| Max pipe weight | |
| Number of chucks | |
| Control system | |
| Type of pipes | |
| Support | |
| Max chuck rotation acceleration | |
| Min residual length (tail) | |
| 一本久道久久综合狠狠爱 loading | |
| 一本久道久久综合狠狠爱 unloading | |
| Full-automatic loading | |
| Bevel head | |
| Welding seam detection | |
We ensure the smooth running of 一本久久精品一区二区 一本久久精品一区二区s
Startup & Training
Service & Support
一本久久精品一区二区 service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic 一本久久精品一区二区 operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.
Our service team operates across the world, and 一本久久精品一区二区 一本久久精品一区二区s are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole 一本久久精品一区二区’s lifespan.
All of our equipment comes with a warranty and a guaranteed return policy.
All of our equipment comes with a warranty and a guaranteed return policy.
Materials
Materials
Aluminium
Carbon steel
Stainless steel
Brass
Galvanized steel
Titanium
Technical
characteristics
Dimensions
一本久久精品一区二区 size
10525 x 2650 x 2300 mm
Net weight
4350 kg
Mechanics
Max loading length
6000/9000/12000 mm
Chuck diametr
160/240/350 mm
Max pipe diametr (round)
350 mm (360 mm optional)
Min pipe diametr (round)
20 mm
Max pipe diametr (rectangle)
250 mm (360 mm optional)
Min pipe diametr (rectangle)
20 mm
Min loading length
100 mm
Unloading table
2000 mm (3000 or 4000 mm optional)
Max pipe weight
200/500/600 kg (1100 kg optioanl)
Type of pipes
Round, Rectangle, H-Beam, L-Beam
Support
Servo follow-up
Min residual length (tail)
90 mm
Max chuck rotation speed
100/80 r/min
Max chuck rotation acceleration
0.8/0.6 G
Max. travel speed
120 m/min
Max. travel Acceleration
1 G
Height sensor
Automatic capacitive
Lubrication system
Automatic centralised
XY axes structure
HIWIN Guides / Helical rack
Max. work speed
Depends on material thickness
Additional gas
Oxygen, nitrogen, air, argon
Main servomotors
Yaskawa
Servomotors
Fuji/Delta/Innovance (Yaskawa optional)
Pneumatic system
Airtac
Gearbox
Nidec shimpo
Power electrics
Siemens
Optics
Laser head
Raytools/BOCI
Laser power
1,5-30 kW
Laser source
Raycus/IPG
Software
Control system
FSCUT3000DE-L/M/G
Software
TubePro
Repositioning accuracy
±0.02 mm
Height control system
BCS100
Type of inductive sensors
High precision inductive
Working temperature
10-40 °C
Laser power adjustment
Software
Options
一本久道久久综合狠狠爱 loading
Optional
Full-automatic loading
Optional
一本久道久久综合狠狠爱 unloading
No
Bevel head
Optional
Welding seam detection
No
Software
FSCUT
FSCUT
Laser head
RAYTOOLS
RAYTOOLS
Laser source
IPG / RAYCUS
IPG / RAYCUS
Motors
YASKAWA / MITSUBISHI
YASKAWA / MITSUBISHI
Rails
HIWIN
HIWIN
Make a request
Logistics

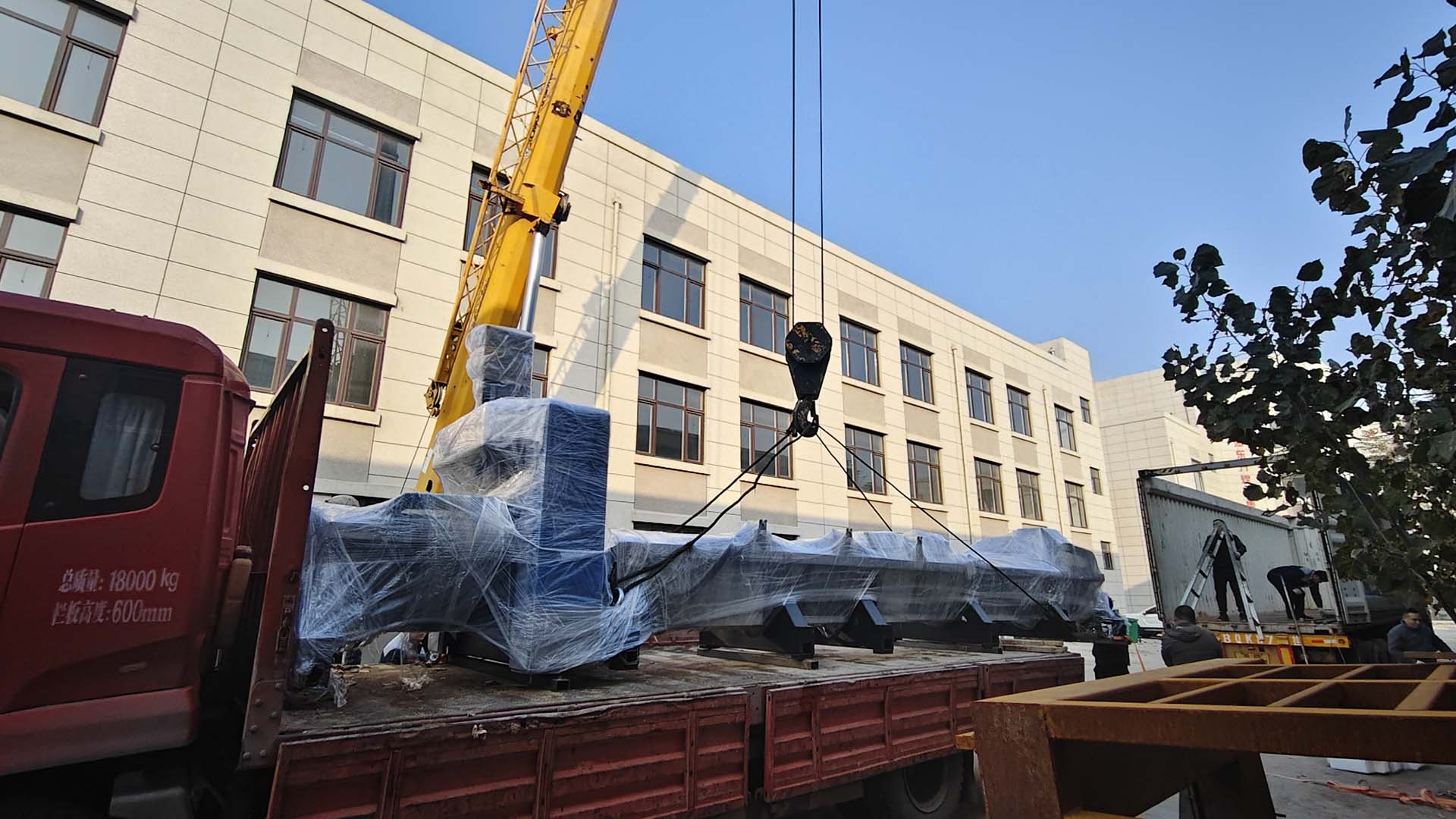

We will deliver the equipment under the most convenient conditions for you
If the 一本久久精品一区二区 is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.
We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a 一本久久精品一区二区 delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.
