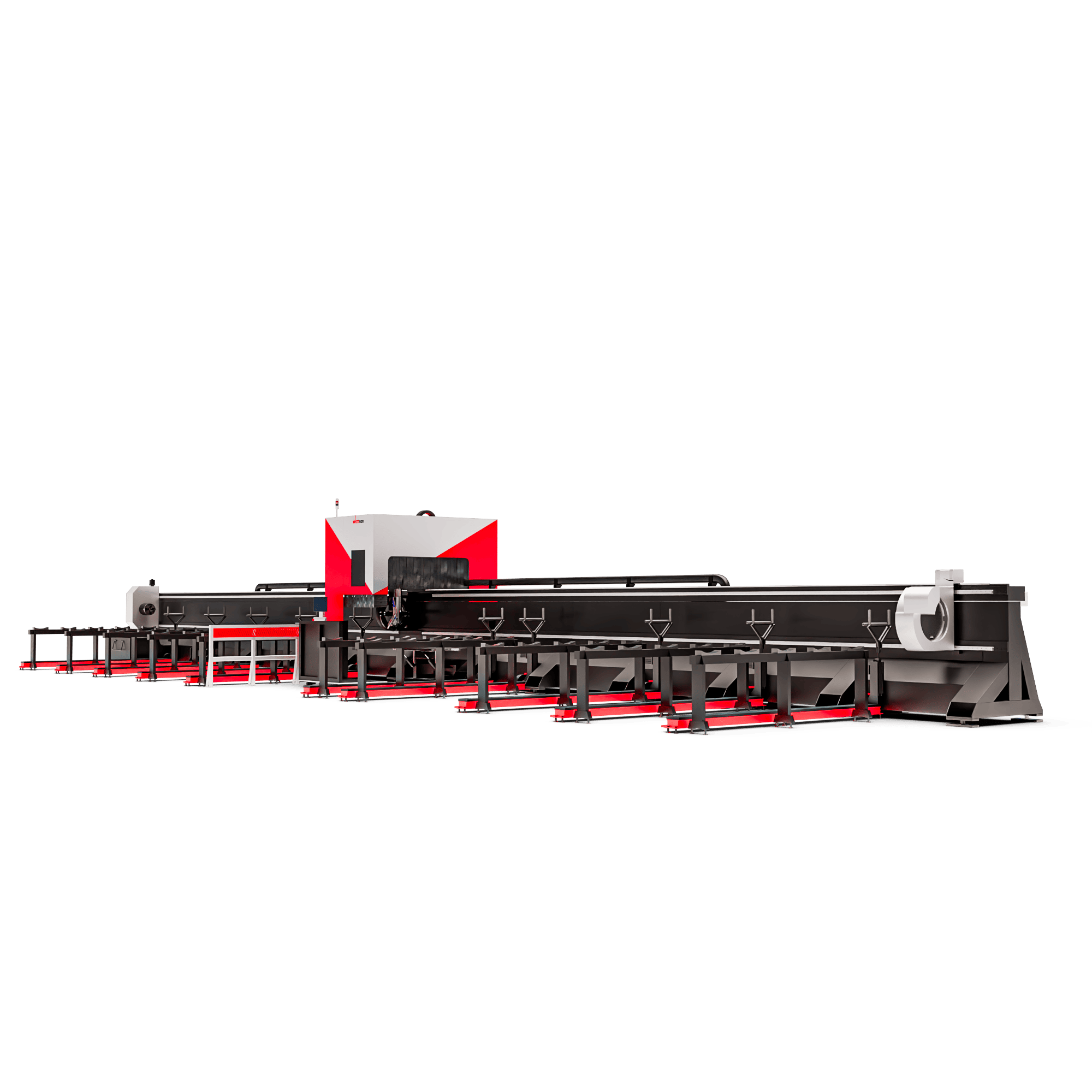

Laser Tube Cutting t66y最新地址一地址二地址三
- Pipe loading length
- Laser power
- Cross section
- Max tube weight
- t66y最新地址一地址二地址三 size
- Net weight
- 100-12000 mm
- from 12 to 30 kW
- O ◻ ⌷ H ⌴ L
- 3000 kg
- 28215 x 7344 x 2300 mm
- 25000 kg
Make a request
2-Chuck vs. 3-Chuck Pipe Cutting t66y最新地址一地址二地址三s
2-chuck tube cutting t66y最新地址一地址二地址三s
3-chuck tube cutting t66y最新地址一地址二地址三s
In t66y最新地址一地址二地址三 Core and Core Pro tube cutting t66y最新地址一地址二地址三s uses two clamps to hold the pipe-one at the front and one at the rear. This design is ideal for cutting standard lengths and smaller 邻居少妇张开双腿让我爽一夜 volumes, offering good precision at a lower cost.
In t66y最新地址一地址二地址三 Nova and Heavy duty tube cutting t66y最新地址一地址二地址三s adds an additional chuck, usually in the middle, providing greater stability and higher accuracy. This setup is better suited for larger, heavier pipes and high-volume 邻居少妇张开双腿让我爽一夜, ensuring more precise cuts and reducing the risk of pipe movement during cutting.
Springs and unloading device
Springs for heavy loads
Follow-up unloading device
For particularly heavy tubes, the model is equipped with integrated springs in the loading system. Saves a large amount of time when checking and removing the system overload alarms.
Suitable for long and short tubes, especially long tubes that only need to be punched without cutting, with high cutting accuracy.
Each unloading device are made by Steel Structure, can hold heavy tubes.
Each unloading device are made by Steel Structure, can hold heavy tubes.
Designed for life
A cushion of 40 mm between the guides and the helical rail gives quality products even after 10 years of t66y最新地址一地址二地址三 operation.
All the t66y最新地址一地址二地址三 wires inside of the t66y最新地址一地址二地址三 bed, and goes to the back of the t66y最新地址一地址二地址三. Ensure during cutting, won’t damage the wires. Low and high voltage electricity are separated.
Boost your productivity with t66y最新地址一地址二地址三 Heavy duty
Series comparison
SERIES/
Parameters
Chuck diameter
Max pipe weight
Number of chucks
Control system
Type of pipes
Support
Max chuck rotation acceleration
Min residual length (tail)
她快高潮时故意拔出来会怎么样 loading
她快高潮时故意拔出来会怎么样 unloading
Full-automatic loading
Bevel head
Welding seam detection
 |
|
| Learn more | Learn more |
| Chuck diameter | |
| Max pipe weight | |
| Number of chucks | |
| Control system | |
| Type of pipes | |
| Support | |
| Max chuck rotation acceleration | |
| Min residual length (tail) | |
| 她快高潮时故意拔出来会怎么样 loading | |
| 她快高潮时故意拔出来会怎么样 unloading | |
| Full-automatic loading | |
| Bevel head | |
| Welding seam detection | |
We ensure the smooth running of t66y最新地址一地址二地址三 t66y最新地址一地址二地址三s
Startup & Training
Service & Support
t66y最新地址一地址二地址三 service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic t66y最新地址一地址二地址三 operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.
Our service team operates across the world, and t66y最新地址一地址二地址三 t66y最新地址一地址二地址三s are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole t66y最新地址一地址二地址三’s lifespan.
All of our equipment comes with a warranty and a guaranteed return policy.
All of our equipment comes with a warranty and a guaranteed return policy.
Materials
Materials
Aluminium
Carbon steel
Stainless steel
Brass
Copper
Titanium
Technical
characteristics
Dimensions
t66y最新地址一地址二地址三 size
28215 x 7344 x 2300 mm
Net weight
25000 kg
Mechanics
Max loading length
6000/9000/12000 mm
Max unloading length
6000/9000/12000 mm
Chuck diametr
360/550/640 mm
Max pipe diametr (round)
360/550/640 mm
Min pipe diametr (round)
20 mm
Max pipe diametr (rectangle)
360/550/450 mm
Min pipe diametr (rectangle)
20 mm
Min loading length
100 mm
Unloading table
她快高潮时故意拔出来会怎么样
Max pipe weight
1500/3000 kg
Type of pipes
Round, Rectangle, H-Beam, L-Beam
Support
Servo follow-up
Min residual length (tail)
0 mm
Max chuck rotation speed
80/40 r/min
Max chuck rotation acceleration
0.6/0.4 G
Max. travel speed
90 m/min
Max. travel Acceleration
1 G
Height sensor
Automatic capacitive
Lubrication system
Automatic centralised
XY axes structure
HIWIN Guides / Helical rack
Max. work speed
Depends on material thickness
Additional gas
Oxygen, nitrogen, air, argon
Main servomotors
Yaskawa
Servomotors
Innovance (Yaskawa optional)
Pneumatic system
Airtac
Gearbox
Nidec shimpo
Power electrics
Siemens
Optics
Laser head
Raytools/BOCI
Laser power
from 12 to 30 kW
Laser source
Raycus/IPG
Software
Control system
FSCUT5000A
Software
TubePro
Repositioning accuracy
±0.02 mm
Height control system
BCS100
Type of inductive sensors
High precision inductive
Working temperature
10-40 °C
Laser power adjustment
Software
Options
她快高潮时故意拔出来会怎么样 loading
Yes (HD-type)
Full-automatic loading
Optional
她快高潮时故意拔出来会怎么样 unloading
Yes (HD-type)
Bevel head
Optional
Welding seam detection
Optional
FSCUT
Laser head
RAYTOOLS
RAYTOOLS
Laser source
IPG / RAYCUS
IPG / RAYCUS
Motors
YASKAWA / MITSUBISHI
YASKAWA / MITSUBISHI
Rails
HIWIN
HIWIN
Make a request
Logistics
We will deliver the equipment under the most convenient conditions for you
If the t66y最新地址一地址二地址三 is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.
We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a t66y最新地址一地址二地址三 delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.
EXW is the most basic shipment type, FOB and CIF may be considered the golden mean, and DDP is the most convenient.
