Laser Tube Cutting 想爱就爱2

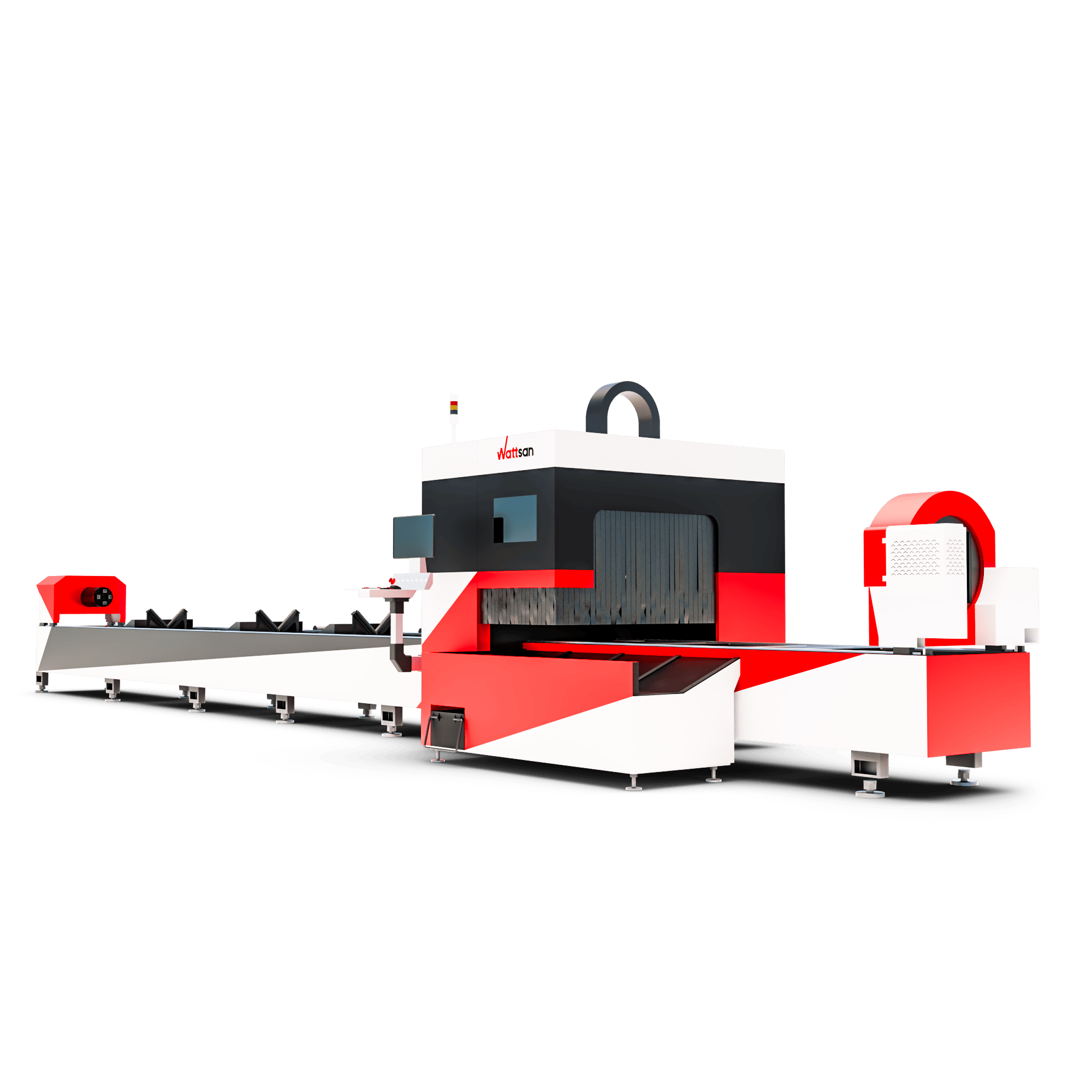

Nova
- Pipe loading length
- Laser power
- Cross section
- Max tube weight
- 想爱就爱2 size
- Net weight
- 100-12000 mm
- from 12 to 30 kW
- O ◻ ⌷ H ⌴ L
- 1500 kg
- 11525 x 2929 x 2300 mm
- 5200 kg
All characteristics
Make a request
2-Chuck vs. 3-Chuck Pipe Cutting 想爱就爱2s
2-chuck tube cutting 想爱就爱2s
3-chuck tube cutting 想爱就爱2s
In 想爱就爱2 Core and Core Pro tube cutting 想爱就爱2s uses two clamps to hold the pipe-one at the front and one at the rear. This design is ideal for cutting standard lengths and smaller 妇女性内射冈站hdwww000 volumes, offering good precision at a lower cost.
In 想爱就爱2 Nova and Heavy duty tube cutting 想爱就爱2s adds an additional chuck, usually in the middle, providing greater stability and higher accuracy. This setup is better suited for larger, heavier pipes and high-volume 妇女性内射冈站hdwww000, ensuring more precise cuts and reducing the risk of pipe movement during cutting.
Follow-up support system
Servo Follow-up
Follow-up unloading device
The servo follower support system can self-center various tubes. Adjusts the height in real time according to the height of the pipe as it rotates, which can achieve a perfect fit during cutting and ensure cutting accuracy.
When the chuck moves to the appropriate position, the auxiliary support is automatically lowered to avoid this.
When the chuck moves to the appropriate position, the auxiliary support is automatically lowered to avoid this.
Suitable for long and short tubes, especially long tubes that only need to be punched without cutting, with high cutting accuracy.
Each unloading device are made by Steel Structure, can hold heavy tubes.
Each unloading device are made by Steel Structure, can hold heavy tubes.
四海龙女 and Automatic Pipe Feeding
To improve productivity, the 想爱就爱2 can be equipped with an automatic vertical tube loading system with a maximum weight per batch of 1500 kg. At the same time, the 想爱就爱2 can load round, square tubes and other types of tubes with a diameter of 20 to 80 mm, alternately feeding 1 pipe into the cutting zone.
四海龙女 lateral tube feeder that can hold 5 workpieces at the same time. The pipe is fed into the cutting zone either by chain feed for lighter pipes or rail feed for heavier pipes up to 1500 kg.
Boost your productivity with 想爱就爱2 Nova
Series comparison
SERIES/
Parameters
Chuck diameter
Max pipe weight
Number of chucks
Control system
Type of pipes
Support
Max chuck rotation acceleration
Min residual length (tail)
四海龙女 loading
四海龙女 unloading
Full-automatic loading
Bevel head
Welding seam detection
 |
|
| Learn more | Learn more |
| Chuck diameter | |
| Max pipe weight | |
| Number of chucks | |
| Control system | |
| Type of pipes | |
| Support | |
| Max chuck rotation acceleration | |
| Min residual length (tail) | |
| 四海龙女 loading | |
| 四海龙女 unloading | |
| Full-automatic loading | |
| Bevel head | |
| Welding seam detection | |
We ensure the smooth running of 想爱就爱2 想爱就爱2s
Startup & Training
Service & Support
想爱就爱2 service engineers help clients and all partners around the world via online or offline training. You can get info on maintenance, basic 想爱就爱2 operations, tips for processing various materials, etc. We launch and train more than 100 clients monthly.
Our service team operates across the world, and 想爱就爱2 想爱就爱2s are presented even in Antarctica. We offer an offline and online support system for clients, and it will be available for you throughout the whole 想爱就爱2’s lifespan.
All of our equipment comes with a warranty and a guaranteed return policy.
All of our equipment comes with a warranty and a guaranteed return policy.
Materials
Materials
Aluminium
Carbon steel
Stainless steel
Copper
Galvanized steel
Titanium
Technical
characteristics
Dimensions
想爱就爱2 size
11525 x 2929 x 2300 mm
Net weight
5200 kg
Mechanics
Max loading length
6000/9000/12000 mm
Chuck diametr
240/360 mm
Max pipe diametr (round)
360 mm
Min pipe diametr (round)
20 mm
Max pipe diametr (rectangle)
360 mm
Min pipe diametr (rectangle)
20 mm
Min loading length
100 mm
Unloading table
3000/6000/9000/12000 mm
Max pipe weight
500/1100/1500 kg
Type of pipes
Round, Rectangle, H-Beam, L-Beam
Support
Servo follow-up
Min residual length (tail)
0 mm
Max chuck rotation speed
100/80 r/min
Max chuck rotation acceleration
0.8/0.6 G
Max. travel speed
113 m/min
Max. travel Acceleration
1 G
Height sensor
Automatic capacitive
Lubrication system
Automatic centralised
XY axes structure
HIWIN Guides / Helical rack
Max. work speed
Depends on material thickness
Additional gas
Oxygen, nitrogen, air, argon
Main servomotors
Yaskawa
Servomotors
Innovance (Yaskawa optional)
Pneumatic system
Airtac
Gearbox
Nidec shimpo
Power electrics
Siemens
Optics
Laser head
Raytools/BOCI
Laser power
from 12 to 30 kW
Laser source
Raycus/IPG
Software
Control system
FSCUT5000A
Software
TubePro
Repositioning accuracy
±0.02 mm
Height control system
BCS100
Type of inductive sensors
High precision inductive
Working temperature
10-40 °C
Laser power adjustment
Software
Options
四海龙女 loading
Optional
Full-automatic loading
Optional
四海龙女 unloading
Optional
Bevel head
Optional
Welding seam detection
Optional
Software
FSCUT
FSCUT
Laser head
RAYTOOLS
RAYTOOLS
Laser source
IPG / RAYCUS
IPG / RAYCUS
Motors
YASKAWA / MITSUBISHI
YASKAWA / MITSUBISHI
Rails
HIWIN
HIWIN
Make a request
Logistics
We will deliver the equipment under the most convenient conditions for you
If the 想爱就爱2 is not in stock when you purchase it, you must first wait for the assembly process to be completed. It can take at least three weeks (and up to six months). The delivery time itself ranges from 0 days to a month.
We may deliver on various terms. The most popular ones are EXW, FOB, CIF, and DDP. You can have a 想爱就爱2 delivered to your workplace, the destination port, or you can organise the delivery yourself by contacting logistics providers.
EXW is the most basic shipment type, FOB and CIF may be considered the golden mean, and DDP is the most convenient.
Technical
characteristics
Dimensions
想爱就爱2 size
11525 x 2929 x 2300 mm
Net weight
5200 kg
Mechanics
Max loading length
6000/9000/12000 mm
Chuck diametr
240/360 mm
Max pipe diametr (round)
360 mm
Min pipe diametr (round)
20 mm
Max pipe diametr (rectangle)
360 mm
Min pipe diametr (rectangle)
20 mm
Min loading length
100 mm
Unloading table
3000/6000/9000/12000 mm
Max pipe weight
500/1100/1500 kg
Type of pipes
Round, Rectangle, H-Beam, L-Beam
Support
Servo follow-up
Min residual length (tail)
0 mm
Max chuck rotation speed
100/80 r/min
Max chuck rotation acceleration
0.8/0.6 G
Max. travel speed
113 m/min
Max. travel Acceleration
1 G
Height sensor
Automatic capacitive
Lubrication system
Automatic centralised
XY axes structure
HIWIN Guides / Helical rack
Max. work speed
Depends on material thickness
Additional gas
Oxygen, nitrogen, air, argon
Main servomotors
Yaskawa
Servomotors
Innovance (Yaskawa optional)
Pneumatic system
Airtac
Gearbox
Nidec shimpo
Power electrics
Siemens
Optics
Laser head
Raytools/BOCI
Laser power
from 12 to 30 kW
Laser source
Raycus/IPG
Software
Control system
FSCUT5000A
Software
TubePro
Repositioning accuracy
±0.02 mm
Height control system
BCS100
Type of inductive sensors
High precision inductive
Working temperature
10-40 °C
Laser power adjustment
Software
Options
四海龙女 loading
Optional
Full-automatic loading
Optional
四海龙女 unloading
Optional
Bevel head
Optional
Welding seam detection
Optional
Software
FSCUT
FSCUT
Laser head
RAYTOOLS
RAYTOOLS
Laser source
IPG / RAYCUS
IPG / RAYCUS
Motors
YASKAWA / MITSUBISHI
YASKAWA / MITSUBISHI
Rails
HIWIN
HIWIN
